Removing the inner door sill cover strip on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the inner door sill cover strip

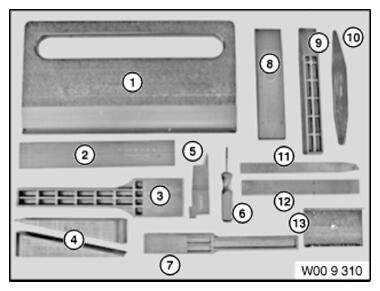

- Get the set of special tools 0 493 752 (00 9 329) ready.
NOTE:
RISK OF DAMAGE
Bending of plastic components
Application of too much force can lead to bending of plastic components.
Bending of plastic components
Application of too much force can lead to bending of plastic components.
- Place special tool directly beside the mounting clip.
- Continue unclipping the part without using the tool if possible.

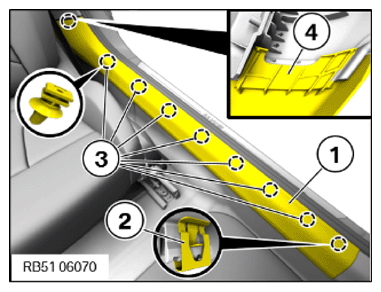

- Using a suitable tool, release the inner door sill cover strip (1) upwards out of the clamp (2) and with the clips (3).
- Guide the inner door sill cover strip (1) out of the lug (4) and the edge protection seal.

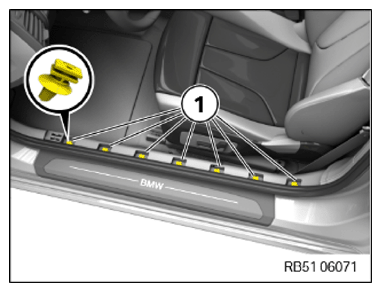

- If necessary, remove the clips (1) and fit onto the inner door sill cover strip.
