Install the trim panel for the storage shelf

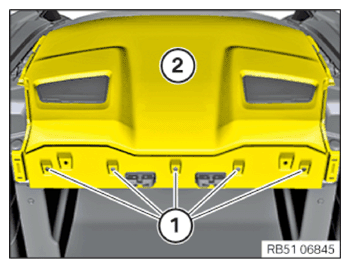

- Install the trim panel for the storage shelf (2) .
- Connect existing plug connections.
- Feed in the trim panel for the storage shelf (2) at the rear guides and position it correctly.
- Mount the expanding rivets (1) .
Follow-up work
- Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to INSTALLING BOTH REAR SIDE TRIM PANELS .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
