Install the wiring harness section of the transmission wiring harness

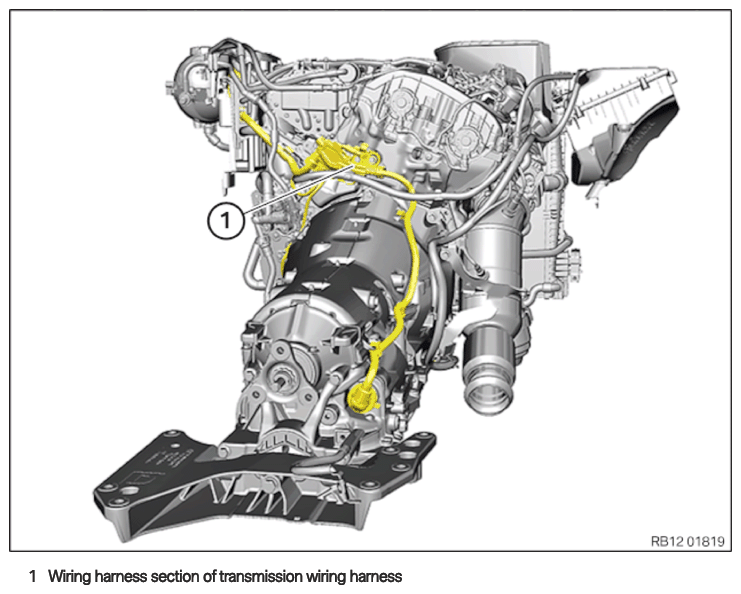

Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

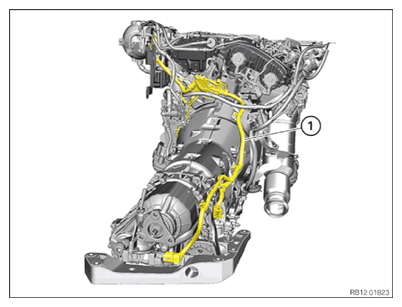

- Insert and install the wiring harness (1)
for the transmission module.

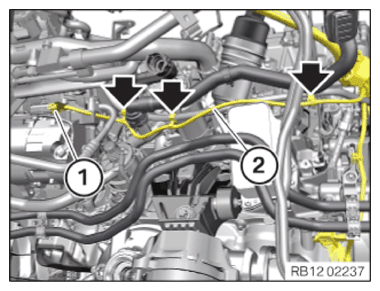

- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure the clamps (arrows).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Fastening the transmission
- Lift the transmission (2) into the mounting orientation.
- Tighten the screws (1)
.TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm - Loosening the luggage strap (1) .
- Remove special tools 2 219 012
and 0 495 498 (23 4 050).
- Install the wiring harness section (3) and fasten with the clamps (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the clamps (arrows).
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure clamps (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Make sure the locking mechanism (2) engages audibly.
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Cable bracket on rear cylinder head/transmission M6 x 20 Tightening torque 10 Nm - Secure the clamps (arrows).
- Insert cable clip (2)
in direction of arrow and install.
The lock (1) must audibly engage.
- Guide in and lock cable clip (3)
.
The cable clip (3) must engage audibly.
- Insert cable clip (2)
in direction of arrow and install.
The locks (1) must engage audibly.
