Installing windshield panel cover

NOTE: RISK OF DAMAGE
Damage caused by water ingress into the vehicle.
Water ingress into the vehicle may result in damage to components, malfunctions and corrosion.

Ensure correct installation of the components.
Only use undamaged components.

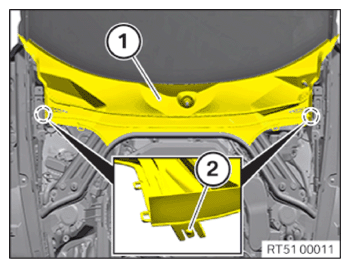

Press the cowl cover (1) into the detent (2) beginning from the side.

Courtesy of BMW OF NORTH AMERICA, INC.
Snap the cowl cover (1) into the detents (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
