(Install the rear left torsion strut)

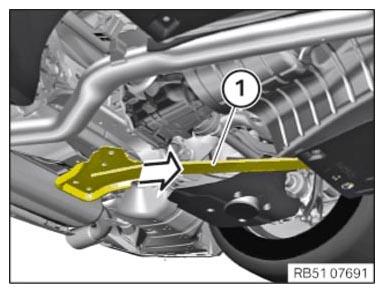

• Insert the torsion strut (1) at the rear left in arrow direction and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

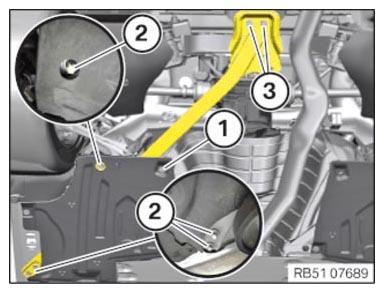

• Replace screws (2) and (3).

  Parts:  Screws

• Hand-tighten the bolts (1) to (3).
• Tighten down screws (3).
  (TIGHTENING TORQUES SPECIFICATION)



  Torsion strut to mounting
  M12 Replace screws.	Tightening torque	100 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  (TIGHTENING TORQUES SPECIFICATION)



  Torsion strut on compression strut/side member
  M10 x 30 Replace screw(s).	tightening torque	56 Nm
  	Angle of rotation	90°

• Tighten down screws (1).

Installing the right rear torsion strut

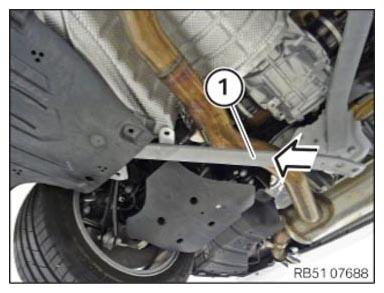

• Feed in torsion strut (1) at the rear right rear in the arrow direction and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

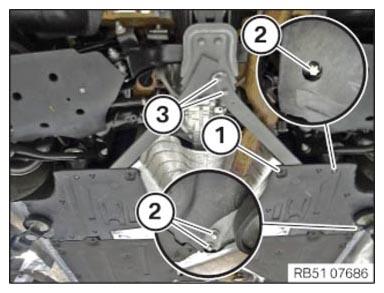

• Replace screws (2) and (3).

  Parts:  Screws

• Hand-tighten the bolts (1) to (3).
• Tighten down screws (3).
  (TIGHTENING TORQUES SPECIFICATION)



  Torsion strut to mounting
  M12 Replace screws.	Tightening torque	100 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  (TIGHTENING TORQUES SPECIFICATION)



  Torsion strut on compression strut/side member
  M10 x 30 Replace screw(s).	tightening torque	56 Nm
  	Angle of rotation	90°

• Tighten down screws (1).
