51 47 Floor/Trunk/Engine Compartment Trim Panels
>>
51 47 490 Removing and installing/replacing underbody protection (front)
>>
Install front underbody protection
Install front underbody protection

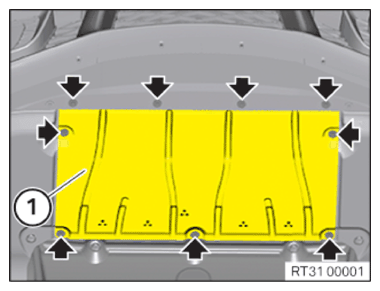

Insert and position the front underbody protection
(1)
.
Tighten screws (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATION
Underbody protection
TS5
Tightening torque
3 Nm
