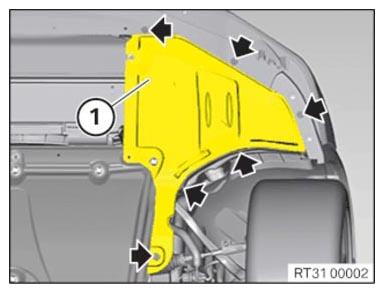

(Installing bottom front cover from the side)

• Guide in front cover (1) underneath on the side.
• Tighten screws (arrows).

(TIGHTENING TORQUES SPECIFICATION)

Lower side cover at front
Screw	Tightening torque	3 Nm
