Install control unit bracket

• Make sure the control unit bracket (1)  at bottom is fed into the mount (2)  correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the control unit bracket (2)  and install.
• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Control unit bracket at the shock tower
  Hexagon screw	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the cable clip (1)  .

  The lock (arrow) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the cable bracket (1)  to the control unit bracket (2)  and lock.

  The lock (arrow) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (2) on the control unit bracket (3).

  The connector (2)  must engage audibly.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

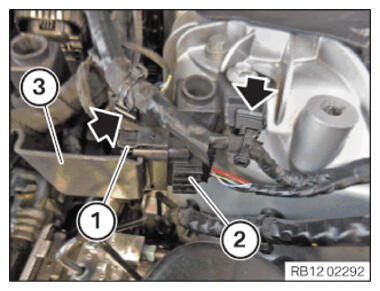

• Attach the connector (2)  to the control unit bracket (3)  and lock.

  The connector (2)  must engage audibly.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING COVER OF THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
