Install the rear right engine compartment cover

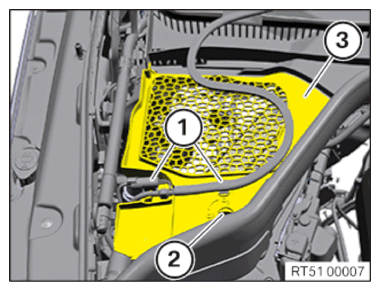

Install cover (3) .
Attach connector and washer fluid hose (1) to the cover (3) .
Lock the lock (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
