(Install the retaining plates)

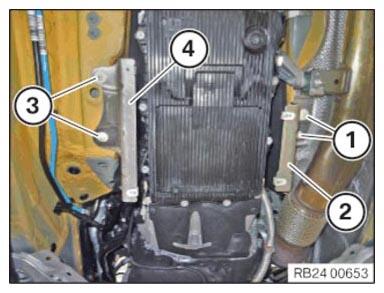

- Install the retaining plates (2) and (4).
- Install the nuts (1) and (3) and tighten.
(TIGHTENING TORQUES SPECIFICATION)
| Retaining plates for underbody cover |
Sheet metal nut/plastic nut
Replace nuts. |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
