(Installing left and right wiper arm)

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: TECHNICAL INFORMATION
The wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate wiper system 1x to ensure wiper system is in the correct installation position.

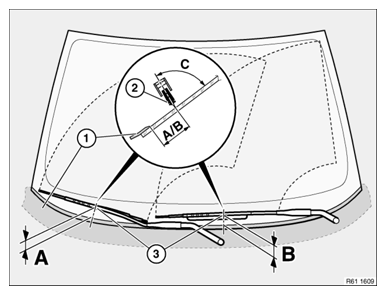

• Connect the wiper arm (3).
• Correctly position the wiper arm (2) in relation to the window edge (1).

(TECHNICAL DATA SPECIFICATION)

Distance from window pane edge to wiper blade
Wiper arm right (A)	65 mm
Wiper arm left (B)	58 mm

Courtesy of BMW OF NORTH AMERICA, INC.

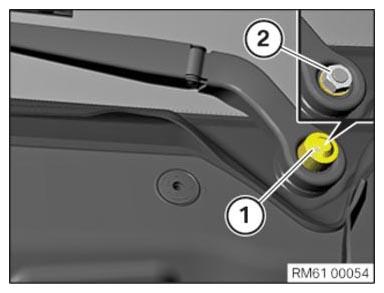

• Tighten nut (2).

(TIGHTENING TORQUES SPECIFICATION)

Windshield wiper arm
Combination hexagon nut M10	Tightening torque	35 Nm

• Connect the protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
