51 47 Floor/Trunk/Engine Compartment Trim Panels
>>
51 47 491 Removing refitting/replacing rear engine undercover
>>
Installing underbody protection at rear
Installing underbody protection at rear

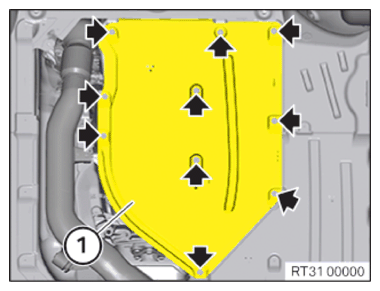

Position rear underbody protection
(1)
.
Tighten screws (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
TIGHTENING TORQUE SPECIFICATION
Underbody protection
TS5
Tightening torque
3 Nm
