(Take hood out of the service position)

CAUTION: Shutting hood or trunk lid.
Injury hazard!

• Support the hood/tailgate in the fully open position using a suitable device.

• Support the hood by hand.

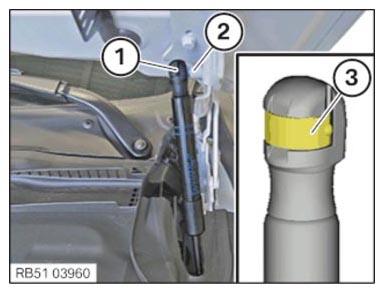

• Remove the special tool (3) from the ball hub (2).
• Detach the special tool (3) from the gas pressure spring (1).
• Continue to support the hood and repeat the operation on the other side of vehicle.

  Courtesy of BMW OF NORTH AMERICA, INC.

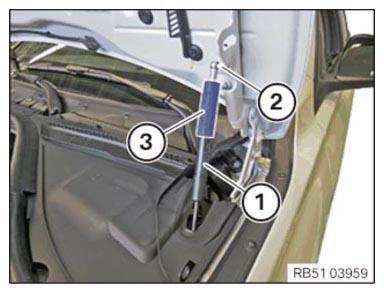

• Check the clamp (3) is fitted correctly.
• Connect ball socket (1) to ball pin (2).
• Continue to support the hood and repeat the operation on the other side of vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.
