Remove/install oil level check switch - AR18.40-P-5113EL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 276, 278 in MODEL 212, 218

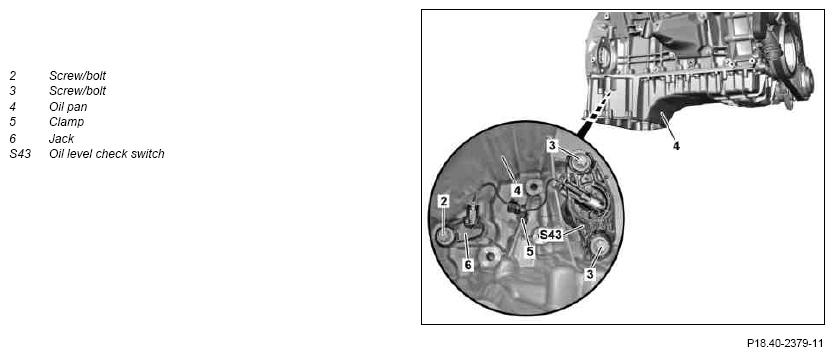

Fig 1: Oil Level Switch Remove/Install Components
G09975257Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove bottom engine compartment paneling   AR61.20-P-1105EW
2 Drain engine oil and catch in a suitable container
REFER TO MAINTENANCE ENGINE 276 in MODEL 212, 218 AP18.00-P-0101CWZ
REFER TO MAINTENANCE ENGINE 278 in MODEL 212, 218 AP18.00-P-0101EW
3 Disconnect outer electrical connection on oil level check switch (S43)
4 Remove oil pan bottom section
IMPORTANT Notes on sealant path for oil pan AH01.45-P-0001-01MMA
IMPORTANT Notes on sealant path for oil pan AH01.45-P-0001-01MMB
INSTALLATION IMPORTANT Observe notes on sealant path on the oil pan (4).
Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
Loctite 7200 *BR00.45-Z-1038-04A
Loctite 5970 sealant *BR00.45-Z-1013-01A
TORQUE SPECIFICATION Bolt, oil pan bottom section to oil pan *BA01.45-P-1003-01E
TORQUE SPECIFICATION Screw/bolt, oil pan to crankcase at transmission end *BA01.45-P-1002-01E
TORQUE SPECIFICATION Screw/bolt, oil pan to crankcase/timing case cover/rear end cover *BA01.45-P-1001-01E
SPECIAL TOOL Application gun
Remove operating fluids and other soiling from sealing surfaces:
↓		 Fig 2
Remove sealant AR01.00-P-0050-01A
5 Detach clip (5) on oil pan (4)
6 Remove screw/bolts (2) and introduce jack (6) into oil pan (4) INSTALLATION IMPORTANT Replace O-ring for jack (6).
TORQUE SPECIFICATION Screw/bolt, oil level switch connector to oil pan *BA18.40-P-1003-02C
7 Remove screw/bolts (3) and remove oil level check switch (S43) from bracket TORQUE SPECIFICATION Screw/bolt, oil level switch to bracket *BA18.40-P-1001-02C
8 Install in the reverse order
9 Read out fault memory with STAR DIAGNOSIS and clear if necessary
REFER TO SELF-DIAGNOSTIC SYSTEMS AD00.00-P-2000-04A
OIL PAN

Number Designation ENGINE 276 ENGINE 278
BA01.45-P-1001-01E Screw/bolt, oil pan to crankcase/timing case cover/rear end cover M6 Nm 9 9
OIL PAN

Number Designation ENGINE 276 ENGINE 278
BA01.45-P-1002-01E Screw/bolt, oil pan to crankcase at transmission end M8 Nm 20 20
OIL PAN

Number Designation ENGINE 276 ENGINE 278
BA01.45-P-1003-01E Bolt, oil pan bottom section to oil pan Nm 14 14
OIL SENSOR

Number Designation ENGINE 276 ENGINE 278
BA18.40-P-1001-02C Screw/bolt, oil level switch to bracket Nm 11 9
OIL SENSOR

Number Designation ENGINE 276 ENGINE 278
BA18.40-P-1003-02C Screw/bolt, oil level switch connector to oil pan Nm 14 14
Fig 2: Identifying Application Gun (112 589 00 25 00)
G09975258Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
