Remove/install oil dipstick guide tube - AR18.40-P-3510EL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.9 in MODEL 212, 218
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| 1 | Remove front engine cover | ||
| 2 | Remove intake manifold | AR09.20-P-1961EL | |
| 3 | Remove ME-SFI [ME] control unit and bracket for ME-SFI [ME] control unit | AR07.08-P-7008EL | |
| 4 | Remove shield from crankshaft Hall sensor (B70) | AR15.12-P-2136EL | |
| 5 | Lift vehicle on vehicle lift | ||
| 6 | Drain engine oil and catch in a suitable container | ||
| AP18.00-P-0101CWZ | |||

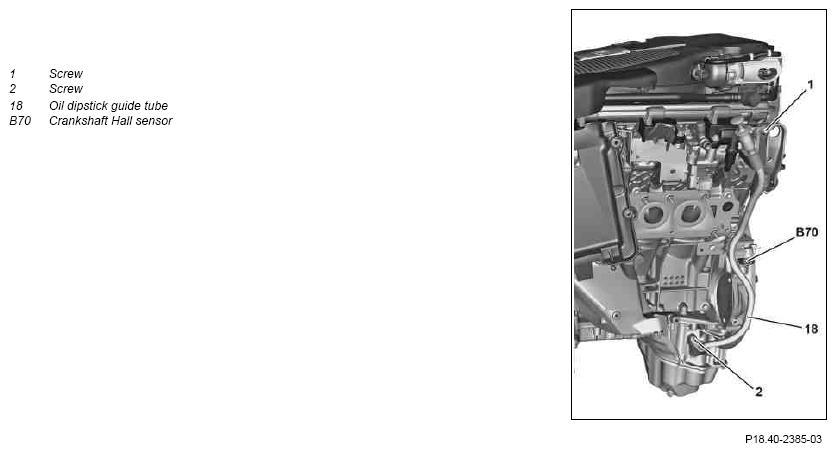

| 7 | Remove screw/bolts (1, 2) and remove oil dipstick guide tube (18) upwards | ||
| *BA01.45-P-1004-01E | |||
| *BA01.45-P-1005-01E | |||
| 8 | Install in the reverse order | ||
| 9 | Check engine oil level; correct if necessary | ||
| AP18.00-P-0101CWZ | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Conduct engine test run and check the engine for oil leaks |
OIL PAN
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA01.45-P-1004-01E | Screw/bolt, guide tube to oil pan | Nm | 5 |
OIL PAN
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA01.45-P-1005-01E | Screw/bolt, guide tube to cylinder head/cylinder head cover/front cover | Nm | 5 |
