Retrofit Drive Kit Plus for smartphones - AZ82.60-P-0027EWA

MODEL 212.0 (except 212.074/075/076/077/092) as of 3/1/13 up to 5/31/15, 212.2 (except 212.274/275/276/277/292) as of 3/1/13 up to 5/31/15 as of model year 2014 up to model year 2015 with CODE 510 (Audio 20 incl. CD changer) without CODE 508 (Navigation box preinstallation) without CODE 509 (Navigation box) except Universal Media Interface

MODEL 212.0 (except 212.074/075/076/077/092) as of 3/1/13 up to 5/31/15, 212.2 (except 212.274/275/276/277/292) as of 3/1/13 up to 5/31/15 as of model year 2014 up to model year 2015 with CODE 523 (MB Audio 20 radio) without CODE 508 (Navigation box preinstallation) without CODE 509 (Navigation box) except Universal Media Interface

MODEL 212.0 (except 212.074/075/076/077/092) as of 6/1/12 up to 5/31/15, 212.2 (except 212.274/275/276/277/292) as of 6/1/12 up to 5/31/15 as of model year 2013 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) without CODE 511 (Audio 50 APS with DVD changer) without CODE 525 (MB Audio 50 APS radio) without CODE 865 (TV tuner) without CODE 867 (SPLITVIEW)

Except Mercedes-Benz InCar Internet, except Universal Media Interface

MODEL 212.0 (except 212.074/075/076/077/092) as of 6/1/12 up to 5/31/15, 212.2 (except 212.274/275/276/277/292) as of 6/1/12 up to 5/31/15 as of model year 2013 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 511 (Audio 50 APS with DVD changer) without CODE 525 (MB Audio 50 APS radio) without CODE 865 (TV tuner) without CODE 867 (SPLITVIEW)

Except Mercedes-Benz InCar Internet, except Universal Media Interface

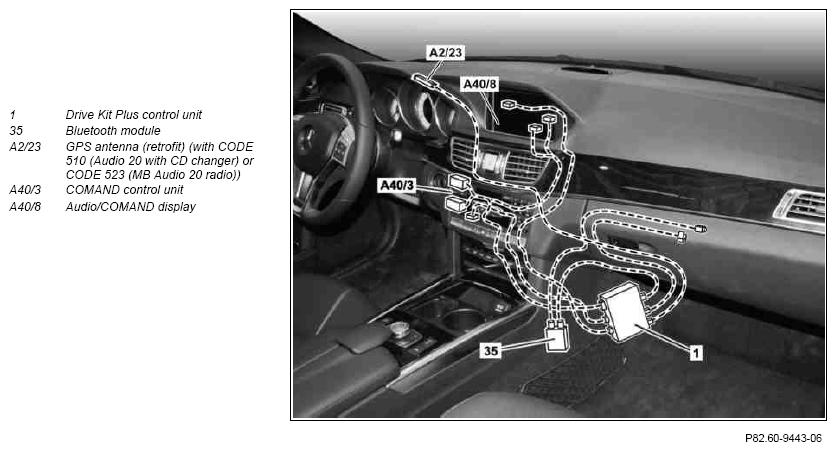

Routing diagram for Drive Kit Plus for the smartphone, shown on left-hand drive vehicle with code 527 (COMAND APS with single DVD drive (with navigation))

Fig 1: Smartphones Drive Kit Plus Routing Diagram (COMAND APS With Single DVD Drive)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove
1	Move front passenger seat toward rear
2	Remove glove compartment
			AR68.10-P-1200EW
3	Remove audio component
		With CODE 510 (Audio 20 radio with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
4	Remove Audio/COMAND display (A408)
		With CODE 510 (Audio 20 radio with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EW
5	Detach center console
		With CODE 518 (Media Interface)	AR68.20-P-2000EW
6	Remove telephone console	With CODE 518 (Media Interface) and CODE 386 (Comfort telephony) with telephone console installed
		With CODE 279 (Electronic gear selector)	AR68.20-P-2150EW
		Without CODE 279 (Electronic gear selector)	AR68.20-P-2150CW
7	Fold back floor covering in passenger footwell
8	Remove footrest in the front passenger footwell and fold backwards
	Install
9	Prepare vehicle for retrofitting Drive Kit Plus for Smartphones		AZ82.60-P-0027-08EWA
10	Retrofit Drive Kit Plus adapter wiring harness		AZ82.60-P-0027-01EWA
		Long wedge	Figure
11	Retrofit Drive Kit Plus low voltage differential signaling (LVDS) wiring harness		AZ82.60-P-0027-04EWA
12	Retrofit GPS antenna (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)	AZ82.60-P-0027-06EWA
13	Retrofit Drive Kit Plus Media Interface adapter line in the center console	With CODE 518 (Media Interface) Angled hand drill	AZ82.60-P-0027-05EWA
14	Retrofit Drive Kit Plus for smartphone connecting cable set		AZ82.60-P-0027-02EWA
		Rechargeable screwdriver, rechargeable drill Wet and dry vacuum cleaner
15	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0027-03EWA
16	Retrofit Bluetooth module (35)		AZ82.60-P-0027-07EWA
17	Install AV adapter	For other AV adapter manufacturers, see ODUS: Services & Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus
18	Install remaining parts
19	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
20	Perform variant coding with XENTRY using the software calibration number (SCN)	Register Drive Kit Plus for smartphone by means of SCN coding at the audio component.
21	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
	Update Vehicle Documentation (VeDoc)
22	Attach note "Drive Kit Plus for the smartphone retrofitted as per AZ82.60-P-0027EWA -P-Y" to design group 68 and 82 under field organization texts.
23	Enter special equipment in online vehicle data card via VeDoc - code "89o"	Ensure here that the third digit is the letter "o" for Oscar.
	Check
24	Conduct function check of Drive Kit Plus for the smartphone	See Owner's Manual.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
