Remove/install radio display - AR82.60-P-7722EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207, 212 with CODE (523) MB Audio 20 radio
MODEL 207, 212 with CODE (510) Audio 20 with CD changer
MODEL 207, 212 with CODE (525) MB Audio 50 APS radio
MODEL 207, 212 with CODE (511) Audio 50 APS with DVD changer
MODEL 207, 212 with CODE (527) COMAND APS with single DVD drive (with navigation)
MODEL 207, 212 with CODE (512) COMAND APS with DVD changer
MODIFICATION NOTES
| 29.3.10 | This document was replaced with a document with a greater number of pictures |
| OV00.01-P-1901-07A | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

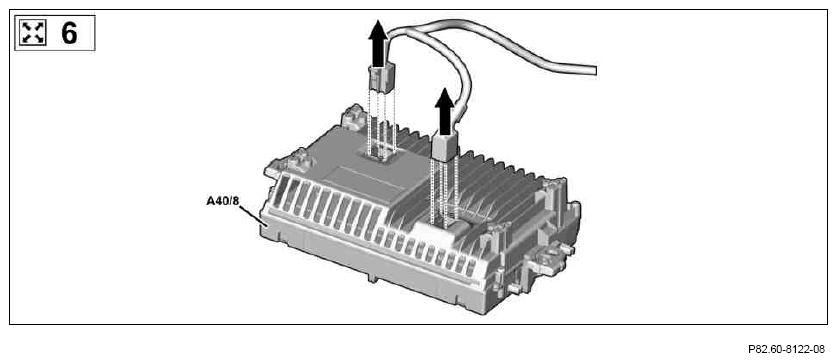

| 1 | Buffer basic data of the Audio/COMAND display (A40/8) in STAR DIAGNOSIS | When replacing the Audio/COMAND display (A40/8). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
