Retrofit Bluetooth (®) module for Drive Kit Plus for smartphones - AZ82.60-P-0027-07EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0
MODEL 212.2
The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

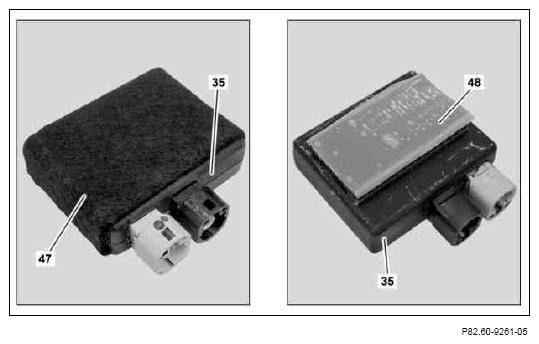

- Stick felt tape (47) to the top side of the Bluetooth module (35).
- Stick Velcro strip (48) to underside of the Bluetooth module (35).

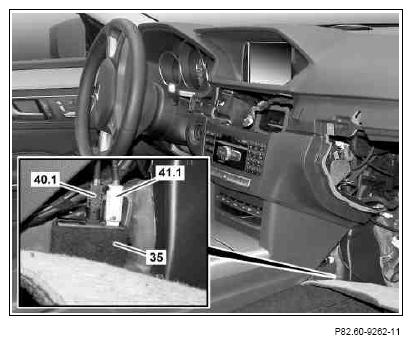

- Connect black 4-pin connector (40.1) to the Bluetooth module (35).
- Connect white 4-pin connector (41.1) to the Bluetooth module (35).
- Remove carrier foil on the Velcro strip of the Bluetooth module (35).
- Glue Bluetooth module (35) to the transmission tunnel.
