Prepare vehicle for retrofitting Drive Kit Plus for smartphones - AZ82.60-P-0027-08EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0
MODEL 212.2
The following operation steps describe work on a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.
- Fold side floor covering to one side.

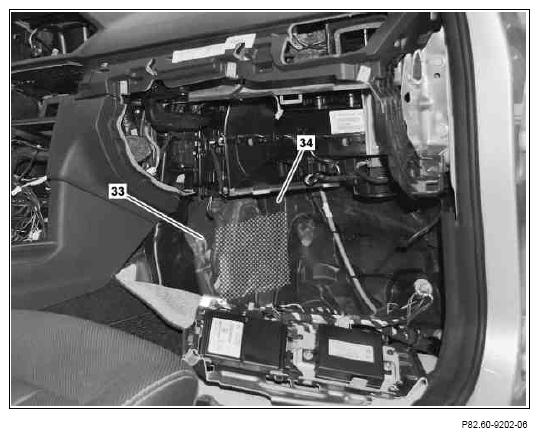

- Cut out insulation mats (33, 34) in cross-hatched area corresponding to the exterior contours of the Drive Kit Plus control unit.
