Replacing roof module frame: Notes

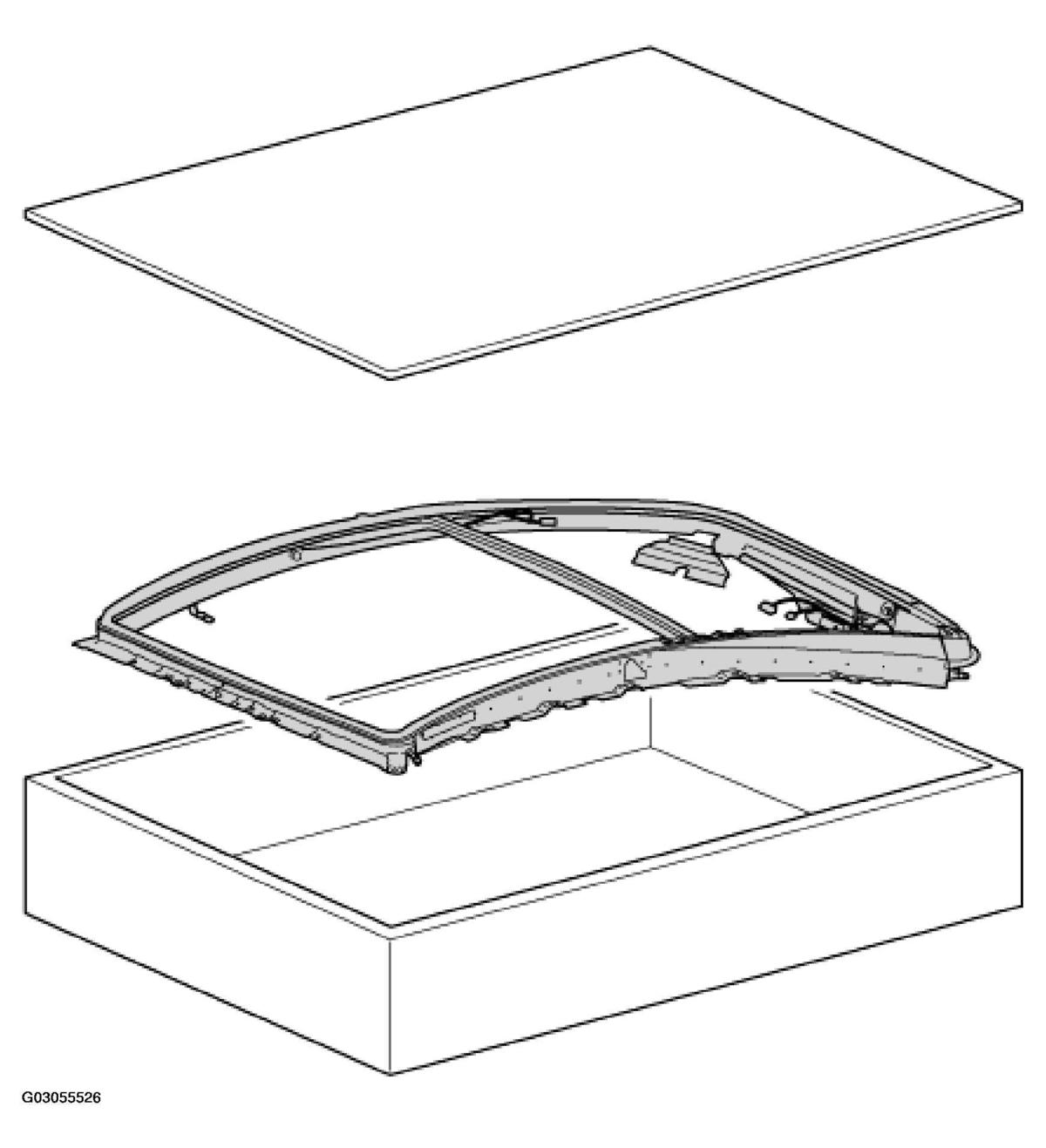

Fig 1: Exploded View Of Roof Module Frame

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The replacement roof module frame is not a complete roof module. The following procedures must be carried out before installation.

• Remove new roof module from the packaging and assemble onto the retaining frame and the transmission jack. See Tools and materials .
• Remove the roof module frame to be replaced from the vehicle. See Removing roof module .

1. Installing rear windscreen wiper motor

   Refer to REMOVING AND INSTALLING REAR WINDSCREEN WIPER MOTOR (SLIDING ROOF) - TARGA .

2. Installing control module

   See Installing control module .

3. Installing closing aid

   See INSTALLING CLOSING AID .

4. Installing draught deflector

   See Installing draught deflector .

5. Assembling mount at the front left and right
   NOTE:

   • The increased collar -arrow-  of the sliding block must always face upwards. See Fig 2.

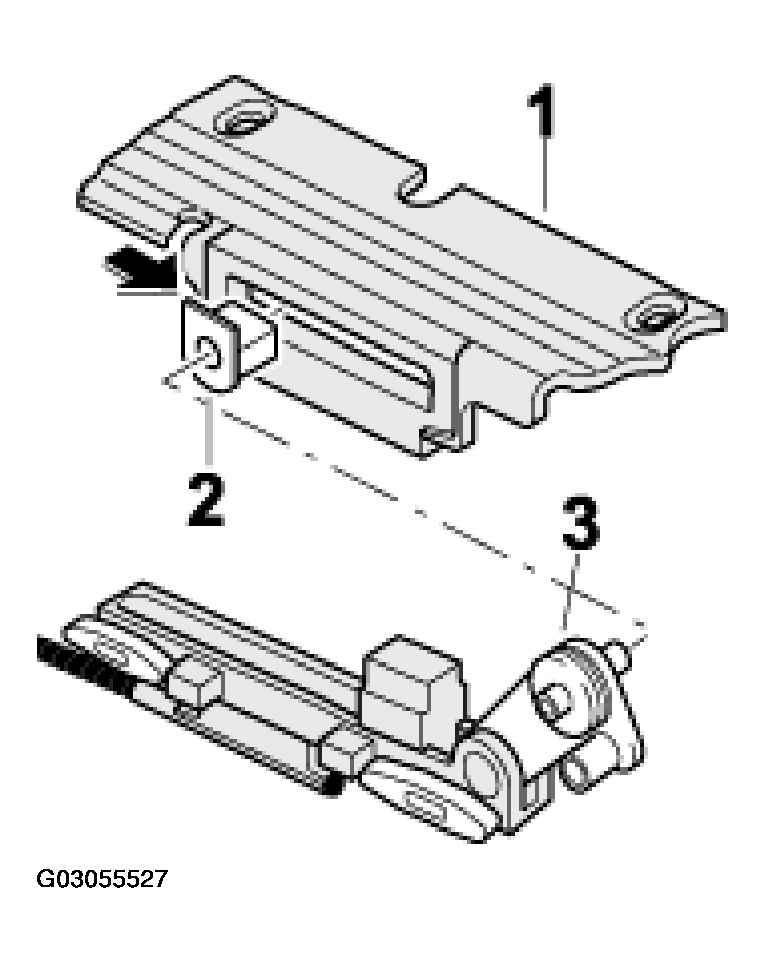

   1. Insert the sliding block -2-  into the mounting plate -1-  . Insert mount slide -3-  into the sliding block -2-  . See Fig 2.
   Fig 2: Inserting Sliding Block Into Mounting Plate & Inserting Mount Slide Into Sliding Block

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
6. Installing frame for sliding roof cover

   See Installing frame for sliding roof cover .

7. Installing electric motor for sun blind

   See Installing left electric motor for sliding roof .

   See Installing right electric motor for sliding roof .

8. Installing lid hinge

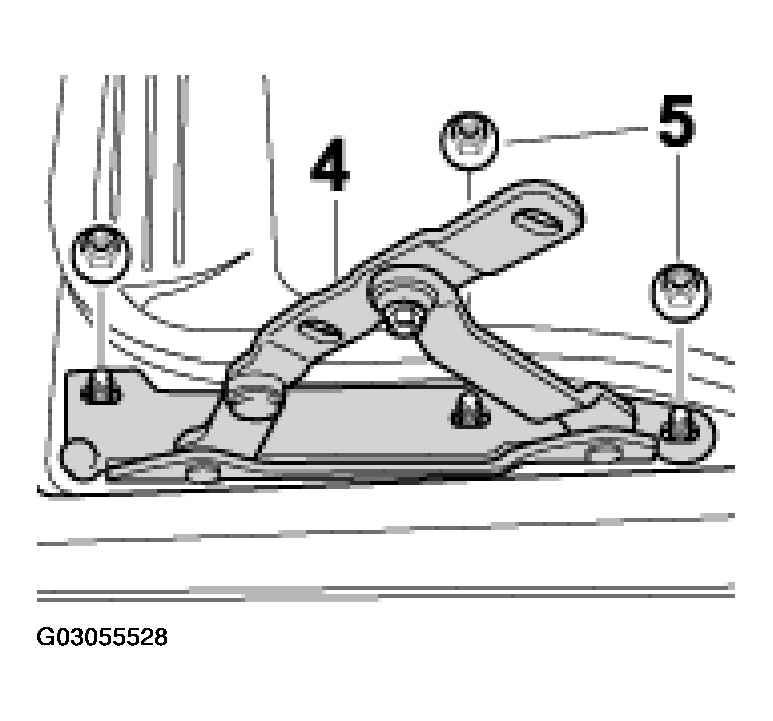

   Position lid hinge -4-  on roof module frame and tighten with fastening nuts -5-  .

   Fig 3: Installing Lid Hinge On Roof Module Frame

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
9. Installing seal for cover of rear window

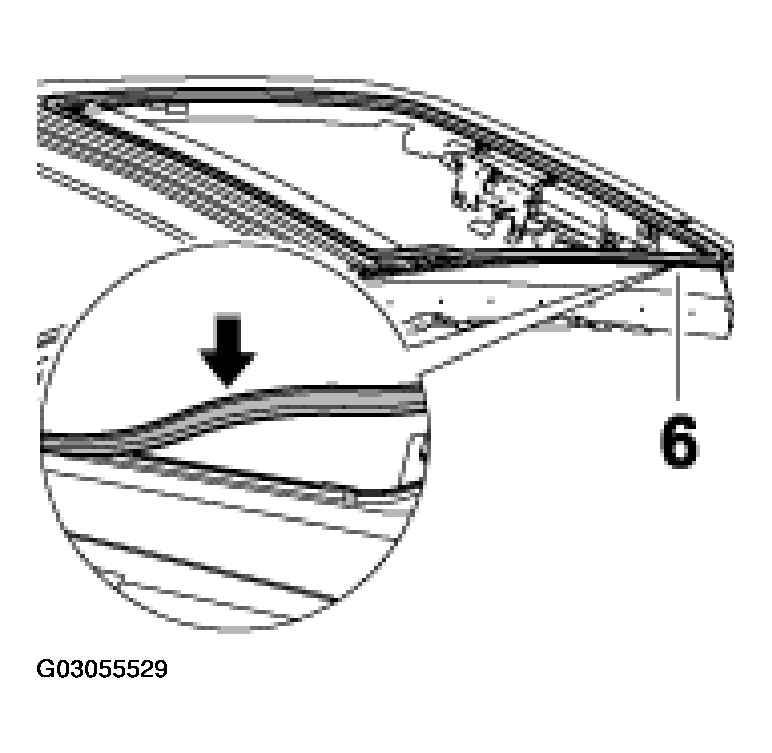

   Push seal -6-  all the way round the flange of the roof module.

   Fig 4: Pushing Seal Around Flange Of Roof Module

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
10. Installing seal for the centre joint

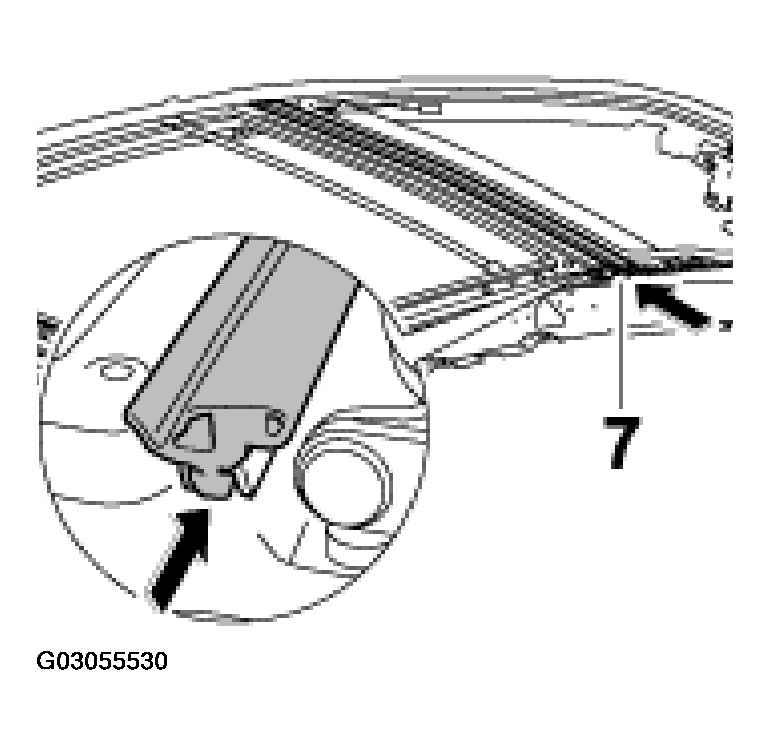

    Insert seal for the centre joint -7-  into the module frame in -direction of arrow-  . The seal must connect on the left and right so that it is flush.

    Fig 5: Installing Centre Joint Seal

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
11. Sticking on Nito tape

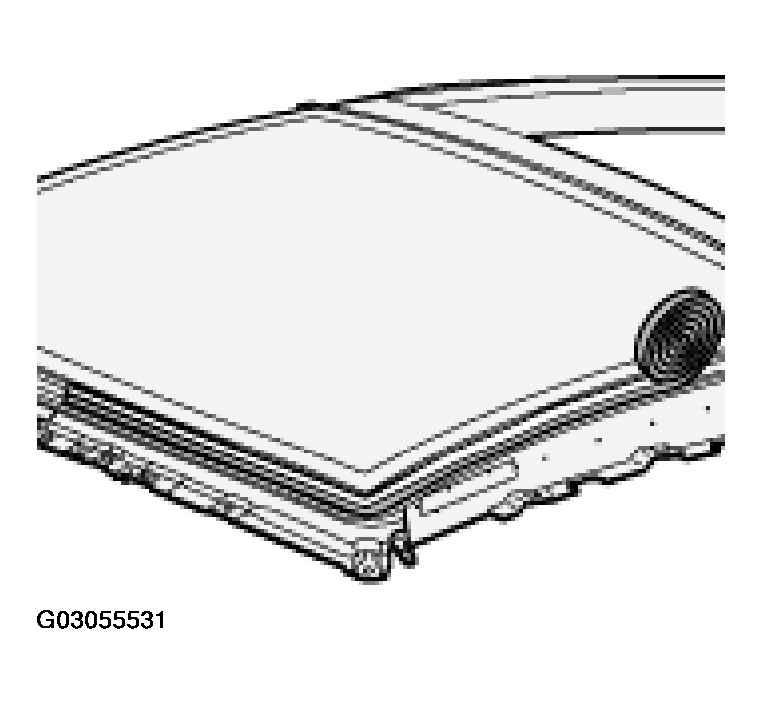

    Stick the Nito tape all the way round the roof module starting from the centring pegs at the front.

    See TOOLS AND MATERIALS .

    Fig 6: Sticking Nito Tape Around Roof Module

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
12. Installing roof module

    See INSTALLING ROOF MODULE .

13. Installing cover for sliding roof
    1. See INSTALLING COVER FOR SLIDING ROOF .
14. Installing electric motor for sun blind

    See INSTALLING ELECTRIC MOTOR FOR SUN BLIND .

15. Installing rear window cover

    See INSTALLING REAR WINDOW COVER .

16. Setting the microswitch of the sliding roof > closed <

    See SETTING THE MICROSWITCH OF THE SLIDING ROOF > CLOSED < .

17. Setting closing aid

    See POSITION OF CLOSING AID .

    See INITIALIZATION OF THE CLOSING AID .

18. Functional inspection
    1. Connect the Porsche System Tester to the diagnostic socket. Switch ignition on.
    2. Select menu item Targa roof, select menu item actuators, actuate open/close function or actuate rear cover function.
    3. Read out fault memory. If necessary, proceed according to CONVERTIBLE TOP, HARDTOP - 911 CARRERA (996) in the case of an error entry.
19. Installing linings

    Refer to REMOVING AND INSTALLING ROOF LINING, FRONT - TARGA .

    Refer to REMOVING AND INSTALLING ROOF LINING, FRONT - TARGA .

    Refer to REMOVING AND INSTALLING PASSENGER COMPARTMENT MONITORING SENSOR .

    Refer to REMOVING AND INSTALLING ADJUSTMENT FITTING (SEAT BELT HEIGHT ADJUSTER) .

    Refer to REMOVING AND INSTALLING REAR THREE-POINT BELT .

    Refer to REMOVING AND INSTALLING SIDE-PANEL LINING - TARGA .

    Refer to REMOVING AND INSTALLING MEMBER TRIM -- TARGA, - AS OF MY 2002 .

    Refer to REMOVING AND INSTALLING A, B AND C-PILLARS - TARGA .

    Refer to REMOVING AND INSTALLING REAR WALL LINING - TARGA .
