Installing left electric motor for sliding roof
NOTE:
Check the shafts at the drive pipe bracket for chips.
LEFT ELECTRIC MOTOR INSTALLING PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|

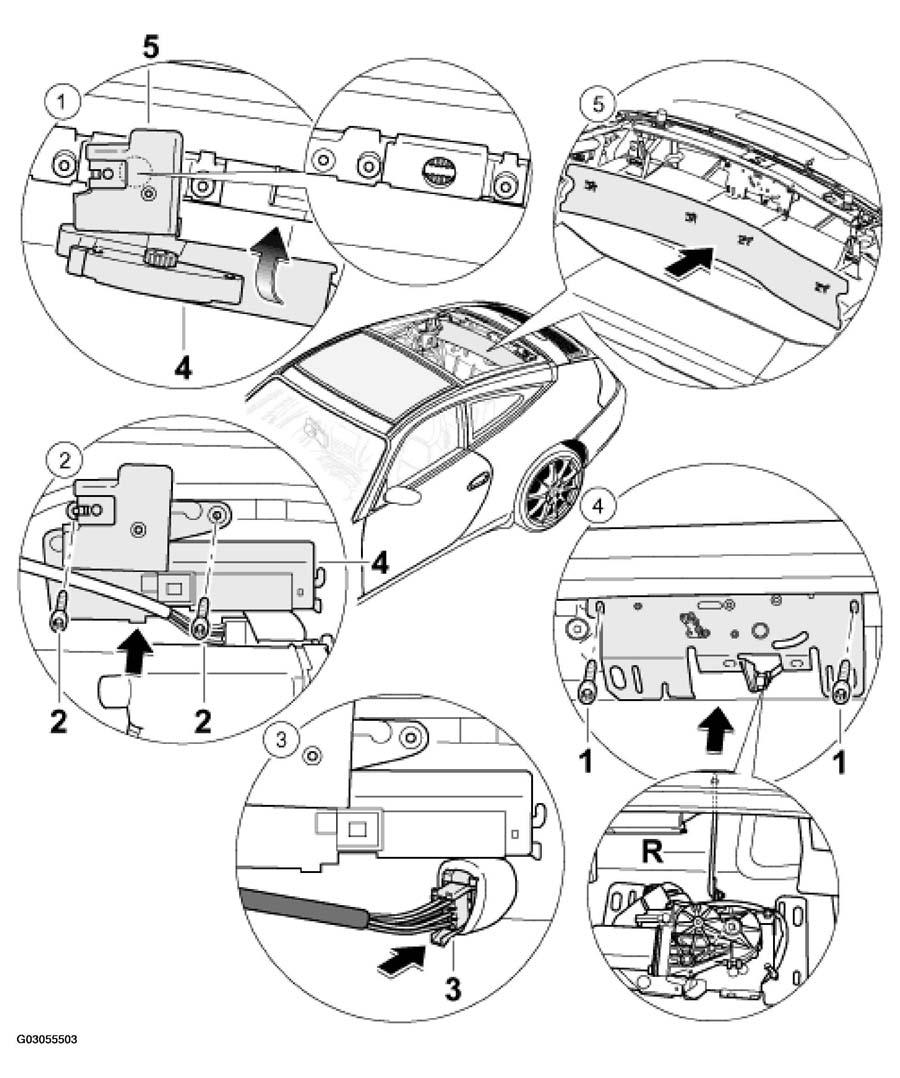

| 1 | Installing the electric motor | Push the motor -4-5- . See Fig 1. |
| 2 | Screwing the electric motor tight | Tighten the fastening screws -2- . See Fig 1. |
| 3 | Connecting the plug connection | Press the plug -5- . See Fig 1. |
| 4 | Installing the closing aid holder | Fold the closing aid holder upwards in the -direction of the arrow-R-1- . See Fig 1. |
| 5 | Installing rear wall lining | Position cover and push on in direction of arrow until the pegs of the cover clip in. |
