Position of closing aid

The position of the closing aid affects the ejection height and the chafing noises at the rear lid. After opening the rear lid, the ejection height should be X = 16 mm.

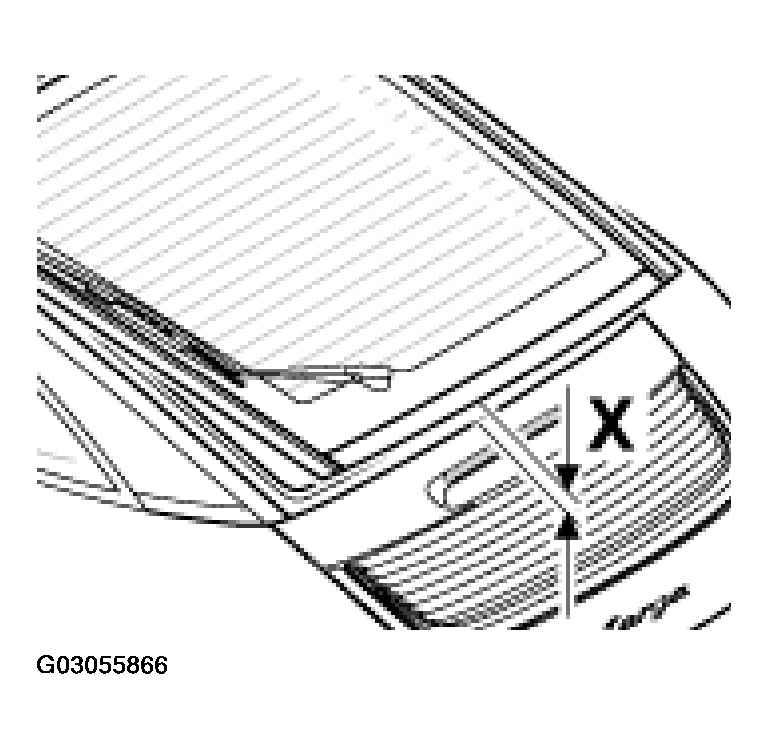

Fig 1: Identifying Position Of Closing Aid Dimension - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.
