Installing control module

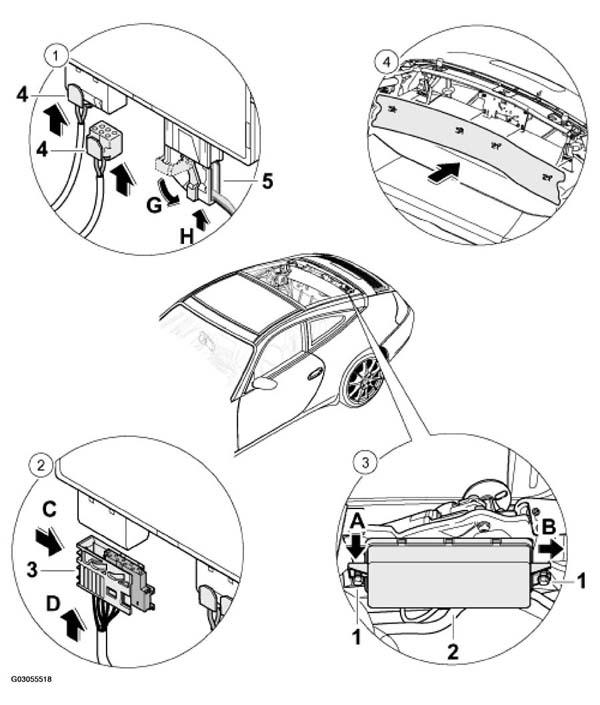

Fig 1: Installing Control Module Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Remove ignition key.

CONTROL MODULE COMPONENTS INSTALLING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Connecting plugs -4-5- . See Fig 1.	Connect plug -5-G-4- . See Fig 1.
2	Connecting plug -3-	Connect plug -3-C- . See Fig 1.
3	Engaging control module -2- . See Fig 1.	Push in the control module -2-B-A-1- . See Fig 1.
4	Installing rear wall lining	Position rear wall lining and push on in direction of arrow until the pegs of the cover clip in.
