Installing rear window cover

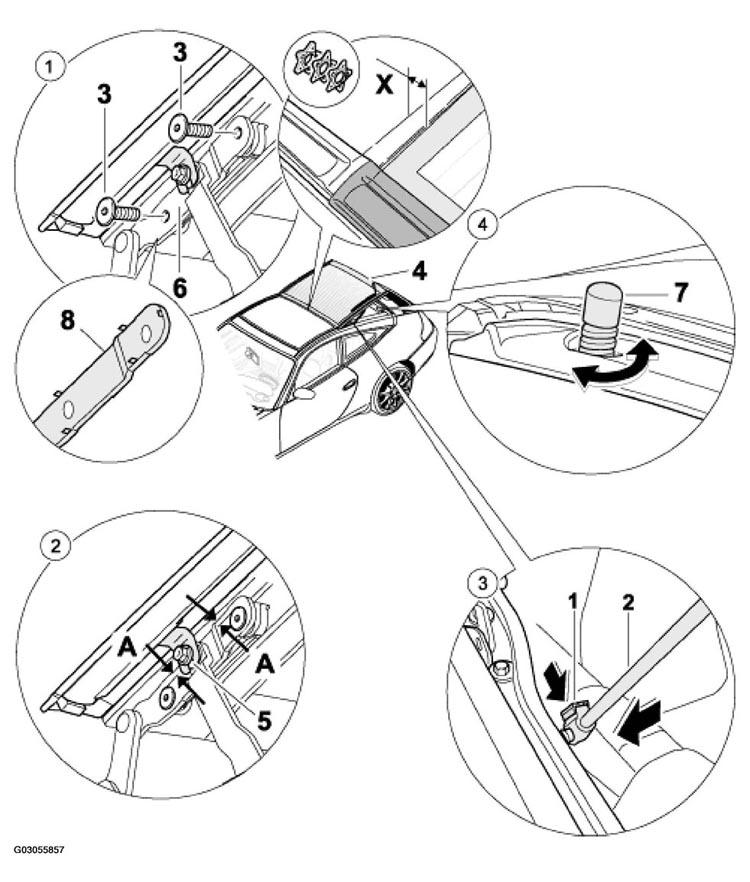

Fig 1: Installing Rear Window Cover Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR WINDOW COVER COMPONENTS INSTALLING PROCEDURE (TARGA)

No.	Procedure	Instructions
1	Installing rear window cover	Position rear window cover -4- on the hinges -6- . Make sure that the shim -8- is positioned between the cover and the hinge. See Fig 1 . Screwing in fastening screws -3- . See Fig 1 . Set the gap dimension -X = 15 +1 mm- between the rear window cover -4- and the sliding roof cover. See Fig 1 .
2	Screwing in fastening screws	Set the upper edge of the hinge parallel -A-3-5-3- . See Fig 1 .
3	Installing the pneumatic spring	Place the ball socket of the pneumatic spring -2-1- . See Fig 1 .
4	Adjusting the rear window cover	Adjust the height of the rear window cover from the body by screwing the rubber pad -7- . See Fig 1 .
		Refer to DIAGRAM - BODY GAP DIMENSIONS - TARGA .
