Installing electric motor for sun blind

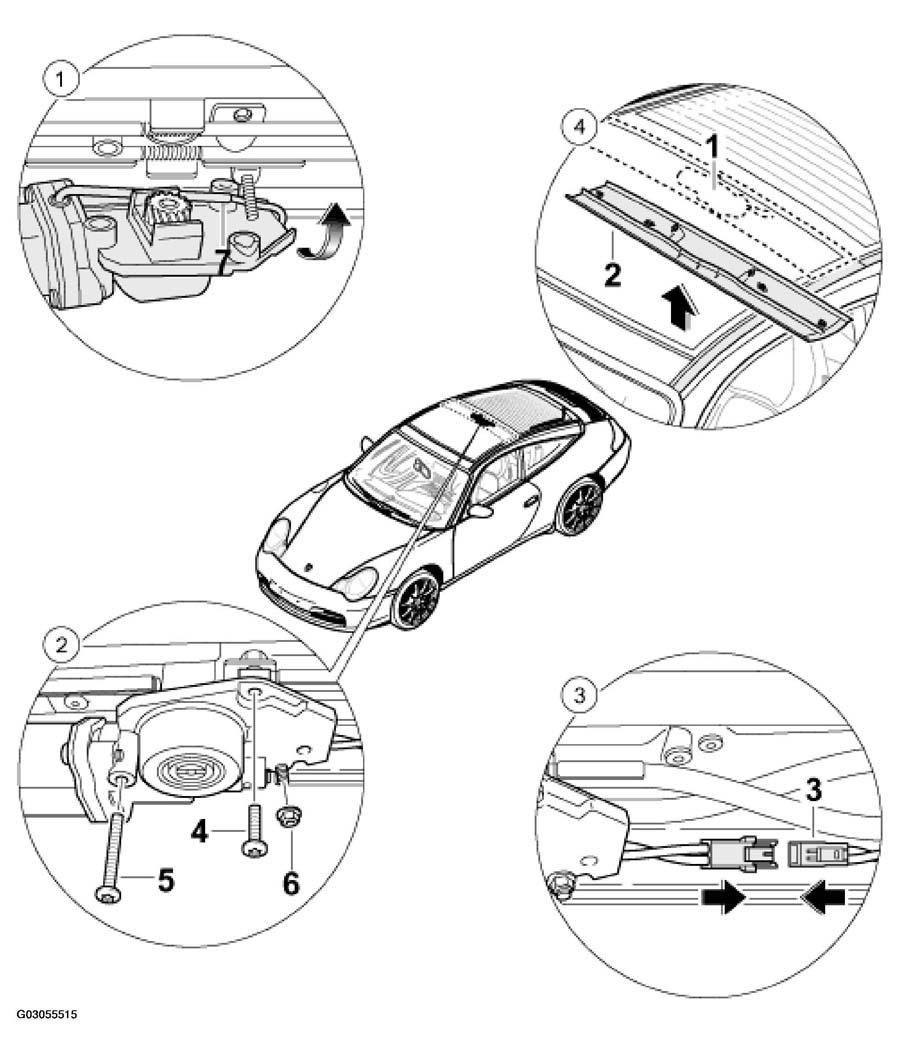

Fig 1: Installing Electric Motor Components For Sun Blind - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Remove ignition key.
Before the electric motor is installed again, visually check the status of the input shafts for damage.

ELECTRIC MOTOR COMPONENTS INSTALLING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Installing the electric motor	Push the electric motor in the -direction of the arrow-7- . See Fig 1.
2	Screwing the electric motor tight	Screw the fastening screws -4-5-6- . See Fig 1.
3	Connecting the plug connection	Press the plug connection -3- . See Fig 1.
4	Installing cover	Press the cover -2-direction of the arrow- . See Fig 1.
