Installing draught deflector

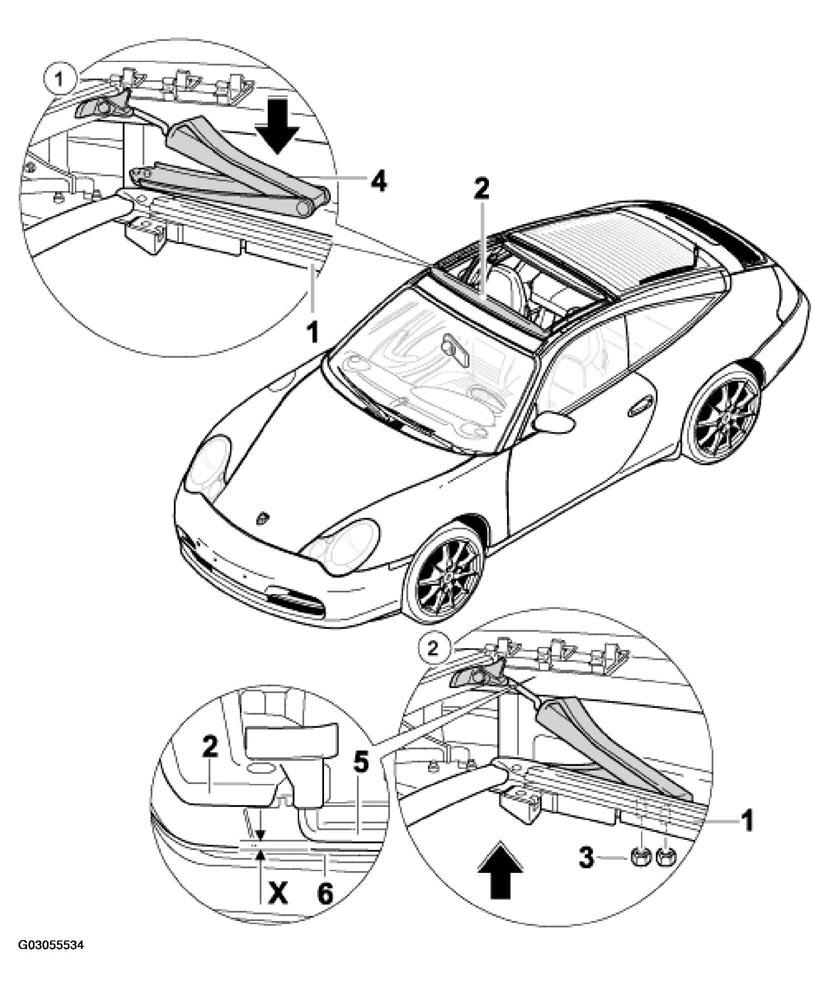

Fig 1: Installing Draught Deflector - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DRAUGHT DEFLECTOR INSTALLING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Inserting the wind deflector -2-1- . See Fig 1.	Press the mounting arms -4-2- . See Fig 1.
2	Aligning and fastening the wind deflector -2- . See Fig 1.	Align the wind deflector -2-x-5-6-3- . See Fig 1.
	Checking function	Check whether the wind deflector can be pushed into the roof frame.
	Installing roof rail trim on both sides	Refer to REMOVING AND INSTALLING MEMBER TRIM -- TARGA, - AS OF MY 2002 .
	Closing roof and checking function	Check whether the wind deflector correctly inserts and the roof completely closes.
