Installing right electric motor for sliding roof
NOTE:
Check the shafts at the drive pipe bracket for chips.
RIGHT ELECTRIC MOTOR INSTALLING PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|

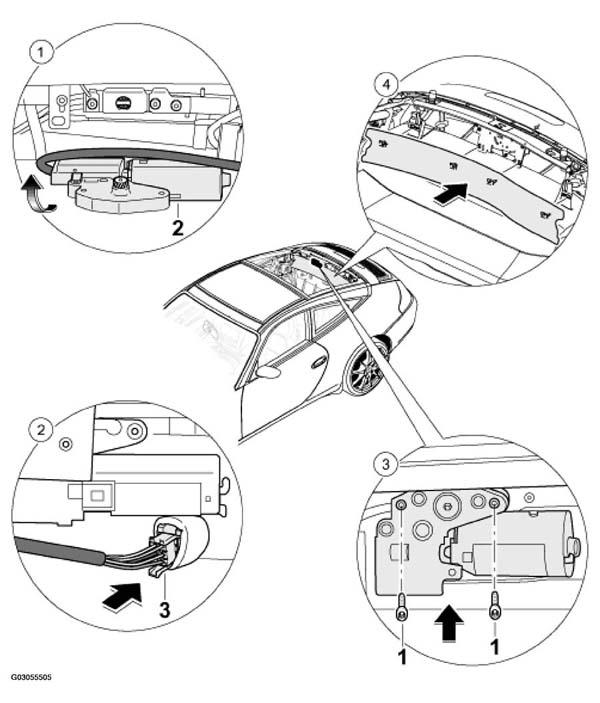

| 1 | Installing roof motor | Push the gear wheel of the electric motor -2- . See Fig 1. |
| 2 | Connecting the plug connection | Press the plug -3- . See Fig 1. |
| 3 | Screwing the roof motor tighten | Tighten the fastening screws -1- . See Fig 1. |
| 4 | Installing rear wall lining | Position cover and push on in direction of arrow until the pegs of the cover clip in. |
