Retrofit Navigation System - AN82.85-S-0002E

Model 447.6

with code EN7 (Audio 15)

with code F66 (Glove compartment, lockable)

except code EV6 (Becker® MAP PILOT pre-installation)

except code ME0 (Electric motor 85 kW)

except code XM0 (Facelift)

Model 447.7

with code EN7 (Audio 15)

with code F66 (Glove compartment, lockable)

except code EV6 (Becker® MAP PILOT pre-installation)

except code ME0 (Electric motor 85 kW)

except code ME4 (Electric motor 145 kW)

except code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove
1	Remove trim from left A-pillar.
			AR68.30-S-4050E
2	Remove speaker in center instrument panel.
			AR82.62-S-7833E
		Do not disconnect electrical wiring plugs.
3	Remove radio (Audio) (N87/2).
		Model 447.6/7 with code EN7 (Audio 15) except code XM7 (Facelift II)	AR82.60-S-7502E
4	Remove glove compartment.
			AR68.10-S-1400E
	Install
5	Retrofit Becker® MAP PILOT control unit (N41) with Becker® MAP PILOT control unit mount (N41-1)	The release pin for removing the Becker® MAP PILOT control unit (N41) is to be handed out to the customer.	AN82.85-S-0002-01E
6	Retrofit TMC antenna splitter (A28/13).		AN82.85-S-2000-04E
7	Retrofit navigation module antenna line (1).		AN82.85-S-0002-02E
8	Retrofit GPS antenna (A2/48).		AN82.85-S-0002-03E
9	Retrofit navigation module electrical wiring harness (2).		AN82.85-S-0002-04E
	Assignment of right footwell firewall fuse and relay module	Model 447.6/7 except code XM0 (Facelift)	GF54.15-S-1256-39TRA

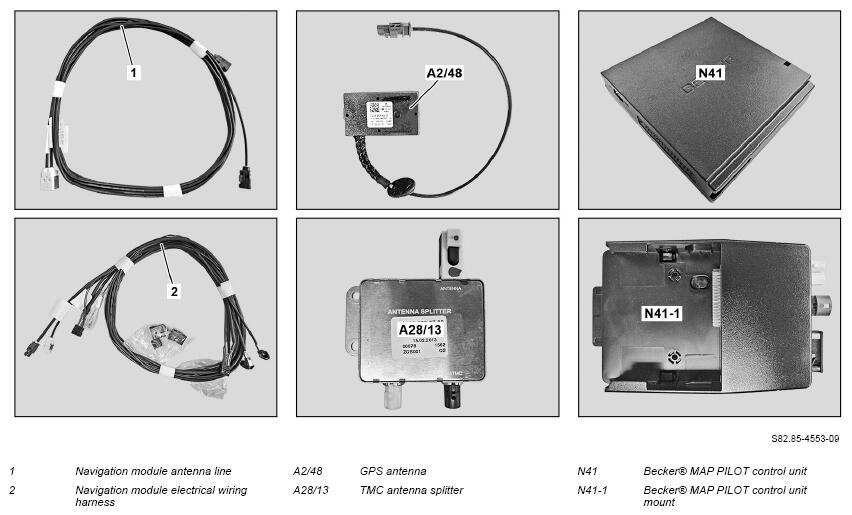

		Wiring harness repair kit, basic	Fig 1
10	Install glove compartment.
			AR68.10-S-1400E
11	Install radio (audio) (N87/2).
		Model 447.6/7 with code EN7 (Audio 15) except code XM7 (Facelift II)	AR82.60-S-7502E
12	Install speaker in center instrument panel.
			AR82.62-S-7833E
13	Install trim on left A-pillar.
			AR68.30-S-4050E
14	Supplement special equipment in Vehicle Documentation (VeDoc).	Designation of the respective special equipment: code E1N (Becker MAP PILOT).
15	Perform SCN coding on radio (Audio) (N87/2).
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding".	AR54.21-S-0015E
16	Perform SCN coding of instrument cluster (IC) control unit (A1/1).
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding".	AR54.21-S-0015E
	Check
17	Perform function test.	See operator's manual for navigation unit.

Part no.	Designation	Quantity
KG 99 (see EPC)	Becker® MAP PILOT scope of supply	1
