Retrofit Antenna Splitter - AN82.85-S-2000-04E

Model 447.6/7

with code EN7 (Audio 15)

with code F66 (Glove compartment, lockable)

except code EV6 (Pre-installation Becker MAP PILOT)

Courtesy of MERCEDES-BENZ USA

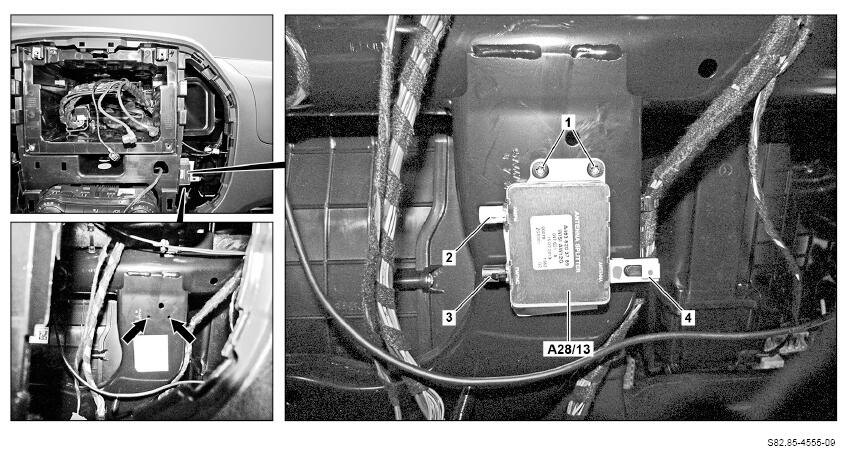

1. Fasten TMC antenna splitter (A28/13) to instrument panel crossmember as shown.

   To do so, screw screws/bolts (1) included in parts kit into the existing holes (arrows).

   The plugs for the connections (2, 3) are mounted after routing the radio antenna line and the navigation module antenna line.

   Courtesy of MERCEDES-BENZ USA

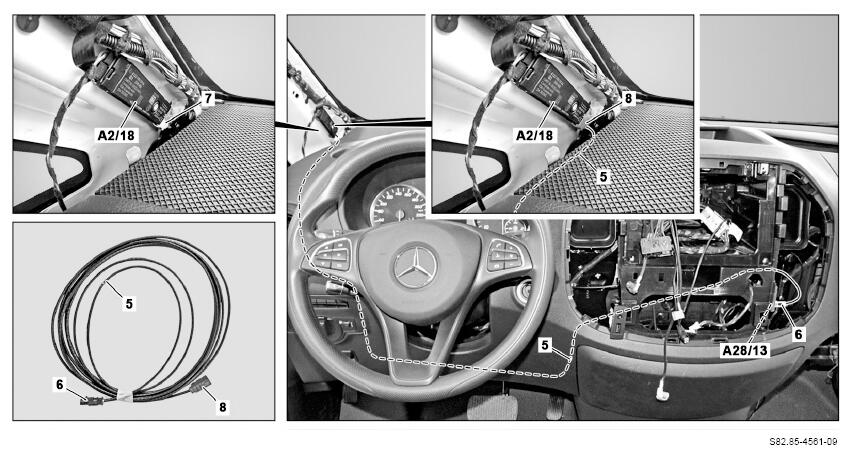

2. Remove plug (7) connected by factory from FM, AM antenna amplifier (A2/18).
3. Strap down extended length of electrical line at plug (7) and fasten using cable ties to factory-installed electrical wiring harness.
4. Remove connector housing of plug (8) from electrical wiring harness (5) and replace with new connector housing from delivered parts kit.

   Use electrical wiring harness (5) from delivered parts kit.

   The remaining included lines are not required.

5. Route electrical wiring harness (5) in instrument panel as shown.

   Do not kink electrical wiring harness (5) and ensure it is routed without any chafing.

   Prevent damage.

6. Fasten electrical wiring harness (5) in sections using cable ties to factory-installed electrical wiring harness.
7. Mount plug (6) of electrical wiring harness (5) to connection (4) of TMC antenna splitter (A28/13).
8. Mount plug (8) of electrical wiring harness (5) to FM, AM antenna amplifier (A2/18).
