Retrofit Navigation Module Wiring Harness - AN82.85-S-0002-04E

Model 447.6/7

with code EN7 (Audio 15)

with code F66 (Glove compartment, lockable)

except code EV6 (Pre-installation Becker MAP PILOT)

	Assignment of right footwell firewall fuse and relay module	Model 447.6/7 except code XM0 (Facelift)	GF54.15-S-1256-39TRA
	Assignment of right footwell firewall fuse and relay module	Model 447.6/7 with code XM0 (Facelift)	GF54.15-S-1256-39TRF

Fig 1: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

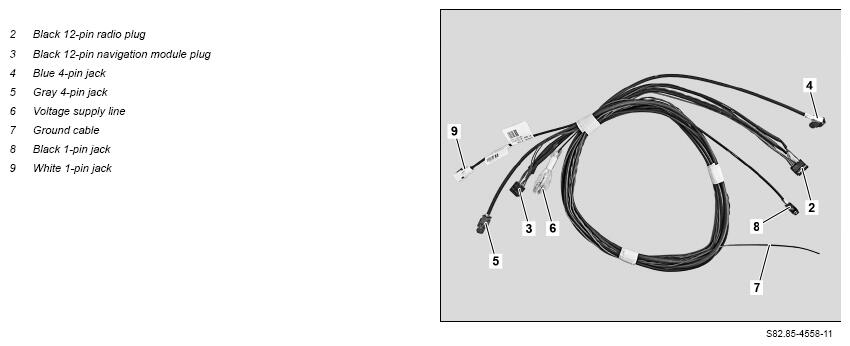

Navigation module wiring harness

Courtesy of MERCEDES-BENZ USA

1. Install black 12-pin radio plug (2) into connector housing included in parts kit.
2. Install black 12-pin navigation module plug (3) into connector housing included in parts kit.
3. Crimp contact spring included in parts kit onto voltage supply line (6) .
4. Crimp cable lug included in parts kit onto ground line (7) .

   Courtesy of MERCEDES-BENZ USA

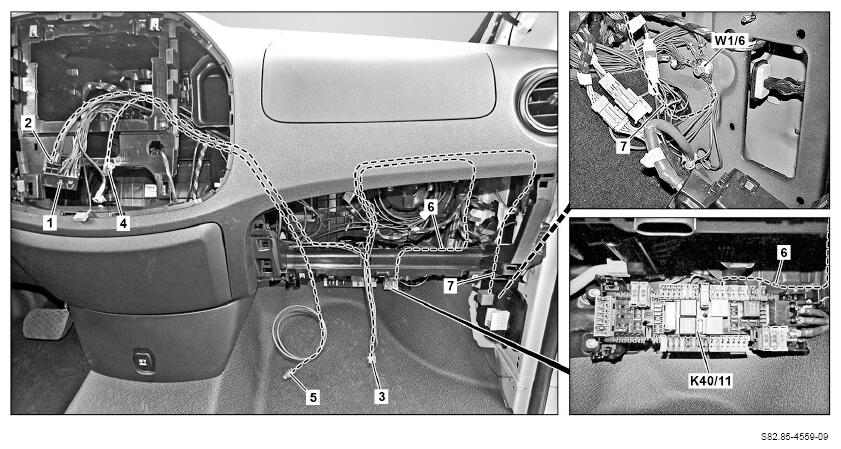

5. Route navigation module wiring harness in instrument panel as shown.

   Do not kink navigation module wiring harness and ensure that it is routed without any chafing.

   This will prevent damage occurring.

6. Fasten navigation module wiring harness section by section using cable ties to factory-installed electrical wiring harness.
7. Install black 12-pin radio plug (2) in central connector (1).

   Slot assignment:

   Slot C

   The central connector (1) and the blue 4-pin jack (4) are mounted during radio (audio) (N87/2) installation.

8. Install voltage supply line (6) into firewall fuse and relay module (K40/11).
9. Unscrew nut of cockpit ground point (W1/6).
10. Install ground line (7) at cockpit ground point (W1/6) and fasten with nut.
11. Strap down extended length at navigation module wiring harness and fasten using cable ties to factory-installed electrical wiring harness.

    Do not kink navigation module wiring harness and ensure that it is routed without any chafing.

    This will prevent damage occurring.

    The black 12-pin navigation module plug (3) and the gray 4-pin jack (5) are mounted during the installation of the glove compartment to the Becker® MAP PILOT control unit mount (N41-1).

    Courtesy of MERCEDES-BENZ USA

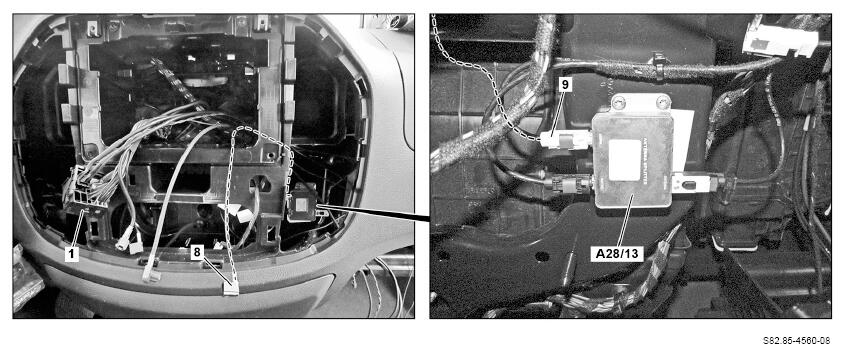

12. Route radio antenna line from installation location of radio (audio) (N87/2) to TMC antenna splitter (A28/13) as shown.
13. Mount white 1-pin jack (9) to TMC antenna splitter (A28/13).

    The black 1-pin jack (8) of the radio antenna line is mounted to the radio (audio) (N87/2) during the installation of the radio.
