Retrofit Navigation Module Antenna Line - AN82.85-S-0002-02E

Model 447.6/7

with code EN7 (Audio 15)

with code F66 (Glove compartment, lockable)

except code EV6 (Pre-installation Becker MAP PILOT)

Courtesy of MERCEDES-BENZ USA

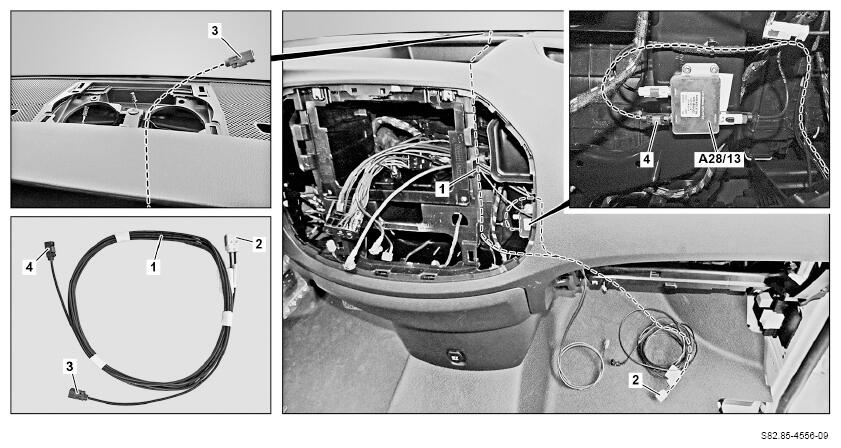

1. Route navigation module antenna line (1) in instrument panel as shown.

   Do not kink navigation module antenna line (1) and ensure that it is routed without any chafing.

   Prevent damage.

2. Fasten navigation module antenna line (1) section by section using cable ties to factory-installed electrical wiring harness.

   If necessary, strap down navigation module antenna line (1).

3. Mount connector (4) of navigation module antenna line (1) at TMC antenna splitter (A28/13).

   Connector (2) of navigation module antenna line (1) is mounted when installing glove compartment at Becker® MAP PILOT control unit mount (N41-1).

   Connector (3) of navigation module antenna line (1) is mounted when retrofitting the GPS antenna (A2/48).
