Retrofit Navigation Module GPS Antenna - AN82.85-S-0002-03E

Model 447.6/7

with code EN7 (Audio 15)

with code F66 (Glove compartment, lockable)

except code EV6 (Pre-installation Becker MAP PILOT)

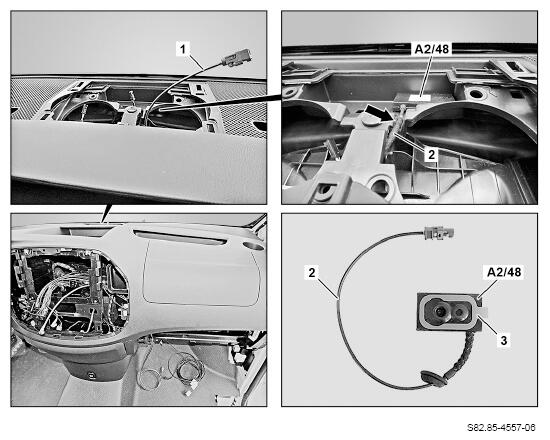

1. Connect electrical line (2) of GPS antenna (A2/48) to jack of navigation module antenna line (1).
2. Route navigation module antenna line (1) with electrical line (2) of GPS antenna (A2/48) as shown in instrument panel.

   Do not kink navigation module antenna line (1) and electrical line (2) of GPS antenna (A2/48) and ensure chafe-free routing. Prevent damage.

   Courtesy of MERCEDES-BENZ USA

3. Fix navigation module antenna line (1) with electrical line (2) of GPS antenna (A2/48) in sections at factory-installed electrical wiring harness using cable ties.
4. Position electrical line (2) of GPS antenna (A2/48) in notch (arrow).
5. Position GPS antenna (A2/48) on instrument panel with positive fit, as shown, and glue.

   The adhesive area for the GPS antenna (A2/48) must be free from grease and dust.

   This prevents malfunctions.

   Remove protective foil (3) from GPS antenna (A2/48) for this purpose.
