Retrofit Navigation Module - AN82.85-S-0002-01E

Model 447.6/7

with code EN7 (Audio 15)

with code F66 (Glove compartment, lockable)

except code EV6 (Pre-installation Becker MAP PILOT)

Courtesy of MERCEDES-BENZ USA

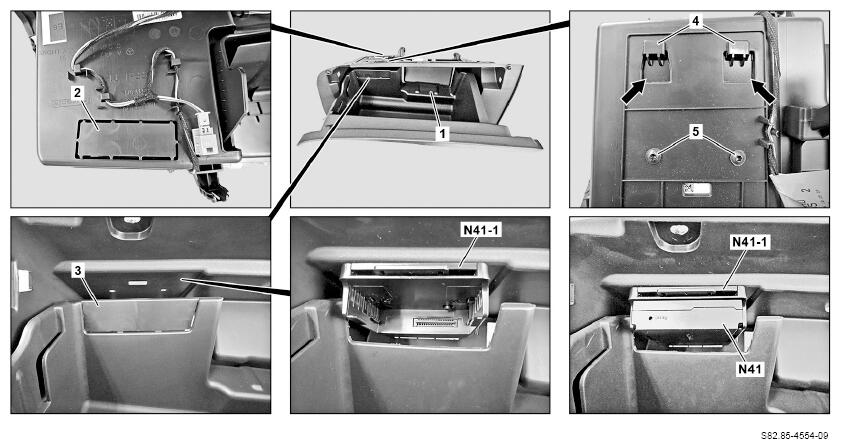

1. Remove pre-perforated sections (2, 3) from removed glove compartment (1).

   The Becker® MAP PILOT control unit mount (N41-1) can then be installed into glove compartment (1).

2. Install Becker® MAP PILOT control unit mount (N41-1) into glove compartment (1) as shown and fasten with included screws/bolts (5).

   To do so, route brackets (4) of Becker® MAP PILOT control unit mount (N41-1) through cutouts (arrows) of glove compartment (1).

3. Install Becker® MAP PILOT control unit (N41) into Becker® MAP PILOT control unit mount (N41-1) as shown.

   Ensure that Becker® MAP PILOT control unit (N41) engages in Becker® MAP PILOT control unit mount (N41-1). This prevents Becker® MAP PILOT control unit (N41) from falling out.

   To do so, remove discharge protection film of rechargeable battery in Becker® MAP PILOT control unit (N41). See manufacturer information in included operator's manual.
