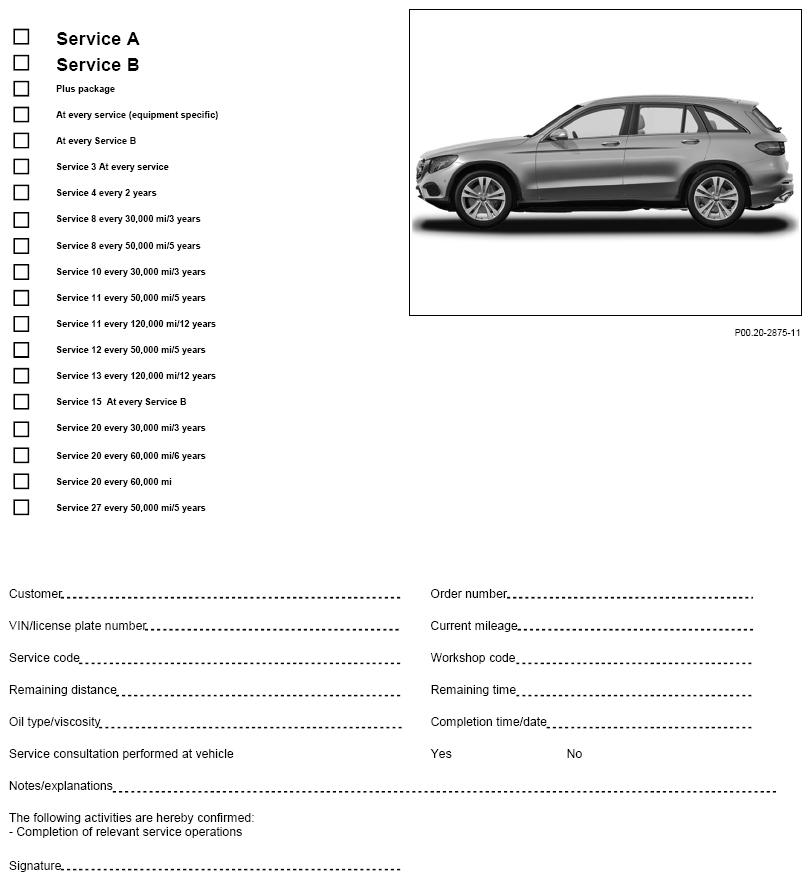

Overview For Service Sheet, USA - AP00.20-P-1240WB

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253 (except 253.99)

Courtesy of MERCEDES-BENZ USA

A	B		Input condition not OK:	ⓧ
Completed
[X]	[X]

		Service reception
□	□	The reception report for service on the vehicle is available in completed form.	............... To be performed by the Service Advisor (where market-specific conditions require). Fully process all acceptance items and the maintenance items listed in the service sheet, only then is the service scope completely performed.	◦	AP00.20-P-0009Z
		Brake system
	□	Perform brake test and enter result in table.	...............	◦	AP42.00-P-4290BA
		Vehicle exterior
	□	Check exterior lighting for proper operation.	...............	◦	AP82.10-P-8252EW
	□	Check function of headlamp range adjustment.	............... Vehicles with dynamic LED headlamps or with the headlamp range adjuster on the exterior lights switch.	◦	AP82.10-P-8250EW
	□	Check and correct headlamp adjustment.	............... The adjustment of headlamps on vehicles with level control system or dynamic LED headlamps is to be invoiced as an additional operation.	◦	AP82.10-P-8260E
□	□	Check charging cable and vehicle socket for mechanical damage.	............... Model 253.311/353/354/911/953/954	◦	AP54.10-P-5458B
		Vehicle interior
	□	Check windshield wipers, windshield washer system for proper operation.	...............	◦	AP82.35-P-8252C
□	□	Check starter.	............... Model 253.354/954	◦	AP15.30-P-1550AA
	□	Replace activated charcoal particle filter.	...............	◦	AP83.00-P-8384B
		Engine compartment
□	□	Brake system: Check fluid level.	...............	◦	AP42.10-P-4210B
□	□	Check air flap in engine compartment.	............... Engine 177	◦	AP20.00-P-2052D
□		Check low-temperature circuit coolant level.	............... Engine 177	◦	AP20.30-P-2052F
			Engine 264		AP20.30-P-2052C
			Engine 274		AP20.30-P-2052L
			Engine 276.8		AP20.30-P-2052H
			Engine 642		AP20.30-P-2052J
			Engine 651		AP20.30-P-2052N
□		Check coolant level in high-voltage battery circuit.	............... Model 253.311/911	◦	AP08.50-P-2053E
			Model 253.353/354/953/954		AP08.50-P-2053C
□		Check all visible parts in engine compartment for damage and fluid loss.	...............	◦	AP00.20-P-0055E
□		Check poly-V-belt in visible area for signs of wear.	............... Engine 264	◦	AP13.22-P-1352F
			Engine 274 except model 253.353/354/953/954, engine 276, 642, 651		AP13.22-P-1352EW
			Engine 654		AP13.22-P-1352G
			Engine 656		AP13.22-P-1352H
		Underside of vehicle
□		Check visible area of poly-V-belts for wear.	............... Engine 177	◦	AP13.22-P-1352D
□		Check all visible parts of vehicle underside for damage and fluid loss.	............... The country-specific regulations for mobility and body shell complaints apply.	◦	AP00.20-P-0054G
□		Check condition of steering and tie rods.	...............	◦	AP46.00-P-4651A
□		Check condition of front axle and front axle joints.	...............	◦	AP33.10-P-3358A
□		Check condition of propeller shaft and flex disks.	...............	◦	AP41.10-P-4152EW
□		Check condition of rear axle and rear axle ball joints.	...............	◦	AP35.20-P-3552A
□		Check condition of suspension struts or shock absorbers and springs.	...............	◦	AP32.25-P-3255E
□		Check tires for damage and crack formation, and enter result in table.	...............	◦	AP40.10-P-4051EW
		Tires Plus package
□	□	Correct tire pressure and enter set tire pressure in table.	...............	◦	AP40.15-P-4061A
		Trunk Plus package
□	□	Check/correct tire pressure spare wheel and enter set tire pressure into table.	............... Vehicles with spare wheel.	◦	AP40.15-P-4061A
□	□	Check TIREFIT tire sealant.	............... Vehicles with TIREFIT. Enter expiration date here: Replace TIREFIT, invoice as additional operation.	◦	AP40.10-P-4054R
□	□	Check first-aid kit (soft sided).	Enter expiration date here: Replace first aid bag, invoice as an additional operation.	◦	AP68.00-P-6850EW
□	□	Check trunk lighting for proper operation.		◦
		Engine compartment Plus package
□	□	Windshield washer system: Check/correct fluid level.	............... When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8210C
		Vehicle interior Plus package
□	□	Check lamps in instrument cluster and interior lighting for proper operation.	...............	◦	AP54.30-P-5453CAA
		Vehicle interior At every service (equipment specific)
□	□	Check ex-factory driving aids.	............... With code 45P (Modification to meet the needs of disabled users - Sales control code)	◦	AP86.20-P-8649U
□	□	Fill up or replace vial of perfume atomizer.	............... After consultation with customer. With CODE P21 (Air quality package)		AP83.10-P-0100A
□	□	Replace battery for KEYLESS-GO key.	............... After consultation with customer. With code 889 (KEYLESS-GO) or with code 893 (KEYLESS-Start)
		External refueling At every service (equipment specific)
□	□	AdBlue® container: Top up fluid level.	............... After consultation with customer. With code U77 (BLUETEC (SCR) diesel exhaust treatment) or with code U79 (BLUETEC (SCR) diesel exhaust treatment, generation 3)		AP14.40-P-1410BT
		Engine compartment At every Service B
	□	Replace dust filter.			AP83.00-P-8381C
		Engine compartment Service 3 At every service
□	□	Engine: Change oil and oil filter.	............... Engine 177		AP18.00-P-0101D
			Engine 264		AP18.00-P-0101E
			Engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive)		AP18.00-P-0101CWE
			Engine 274 except code M005 (Vehicles with 4MATIC/all-wheel drive)		AP18.00-P-0101CWI
			Engine 276		AP18.00-P-0101CWZ
			Engine 642		AP18.00-P-0101EWO
			Engine 651		AP18.00-P-0101CWB
			Engine 654 with code M014 (Uprated engine performance)		AP18.00-P-0101FA
			Engine 654 except code M014 (Uprated engine performance)		AP18.00-P-0101FC
			Engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive)		AP18.00-P-0101OIA
			Engine 656 except code M005 (Vehicles with 4MATIC/all-wheel drive)		AP18.00-P-0101OIB
		Engine compartment Service 4 every 2 years
□	□	Brake system: Replace brake fluid.	...............		AP42.00-P-4280C
		Engine compartment Service 8 every 30, 000 mi/3 years
□	□	Replace air filter element.	............... Engine 177		AP09.10-P-0980K
		Underside of vehicle Service 8 every 30, 000 mi/3 years
□	□	Rear axle: Change oil.	............... With code 467 (Electronic locking differential) or with code 471 (Mechanical locking differential)		AP35.00-P-3501CMG
		Engine compartment Service 8 every 50, 000 mi/5 years
□	□	Replace air filter element.	............... Engine 264		AP09.10-P-0980EWO
			Engine 274		AP09.10-P-0980CWG
			Engine 276		AP09.10-P-0980E
			Engine 642		AP09.10-P-0980GZB
			Engine 651		AP09.10-P-0980EWD
			Engine 654		AP09.10-P-0980R
			Engine 656		AP09.10-P-0980J
		Vehicle interior Service 10 every 30, 000 mi/3 years
□	□	Panoramic sliding sunroof: Clean and lubricate guide mechanism.	............... With code 413 (Panoramic sliding sunroof/glass roof)		AP77.20-P-7732A
		Engine compartment Service 11 every 50, 000 mi/5 years
□	□	Replace fuel filter.	............... Engine 642		AP47.20-P-0780EWO
			Engine 651		AP47.20-P-0780EWD
			Engine 654, 656		AP47.20-P-0780F
		Vehicle interior Service 11 every 120, 000 mi/12 years
□	□	Replace fuel filter.	............... Engine 177, 264, 274, 276.8		AP47.20-P-0780E
		Engine compartment Service 12 every 50, 000 mi/5 years
□	□	Replace spark plugs.	............... Engine 177		AP15.10-P-1580C
			Engine 264		AP15.10-P-1580MCU
			Engine 274		AP15.10-P-1580CWF
			Engine 276		AP15.10-P-1580D
		Underside of vehicle Service 13 every 120, 000 mi/12 years
□	□	Replace coolant in main circuit.			AP20.00-P-2082E
□	□	Replace low-temperature circuit coolant.	............... Engine 177		AP20.00-P-2083C
			Engine 264		AP20.00-P-2083K
			Engine 274		AP20.00-P-2083E
			Engine 276		AP20.00-P-2083I
			Engine 642		AP20.00-P-2083F
			Engine 651		AP20.00-P-2083G
		Vehicle exterior Service 15 At every Service B
	□	Trailer hitch: Check condition and operation.	............... With code 550 (Trailer hitch)	◦	AP31.11-P-3152A
		Underside of vehicle Service 20 every 30, 000 mi/3 years
□	□	Automatic transmission: Change oil and oil filter.	............... Transmission 725.096		AP27.00-P-2702B
		Underside of vehicle Service 20 every 60, 000 mi/6 years
□	□	Automatic transmission: Change oil and oil filter.	............... Transmission 724.2		AP27.00-P-2702A
□	□	Automatic transmission: Change oil and oil filter.	............... Transmission 725.0 except code M005 (Vehicles with 4MATIC/all-wheel drive) up to model year 2016		AP27.00-P-2702B
□	□	Automatic transmission and transfer case: Change oil and automatic transmission oil filter.	............... Automatic transmission Transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) up to model year 2016		AP27.00-P-2702B
			transfer case Transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) up to model year 2016		AP28.00-P-2801A
		Underside of vehicle Service 20 every 60, 000 mi
□	□	Automatic transmission: Change oil and oil filter.	............... Transmission 725.0 except code M005 (Vehicles with 4MATIC/all-wheel drive) as from model year 2017		AP27.00-P-2702B
□	□	Automatic transmission and transfer case: Change oil and automatic transmission oil filter.	............... Automatic transmission Transmission 725.0 (except 725.047/096) with code M005 (Vehicles with 4MATIC/all-wheel drive) as of model year 2017		AP27.00-P-2702B
			Automatic transmission Transmission 725.047 with code M005 (Vehicles with 4-MATIC/all-wheel drive) as from model year 2017		AP27.00-P-2702BE
			transfer case Transmission 725.0 (except 725.096) with code M005 (Vehicles with 4MATIC/all-wheel drive) as of model year 2017		AP28.00-P-2801A
		Underside of vehicle Service 27 every 50, 000 mi/5 years
□	□	Transfer case: Change oil.	............... Transmission 725.096 up to model year 2019		AP28.00-P-2801B
			Transmission 725.096 as of model year. 2020		AP28.00-P-2801C

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK.
Condition not OK.

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle	Spare tire
bar/psi
