Fill/Replace Flacon Of Fragrance System - AP83.10-P-0100A
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 167, 205 (except 205.4), 213, 217, 222, 238, 253, 257, 290, 293
with code P21 (Air quality package)
Shown on model 217.4 with code P21 (AIR-BALANCE package)

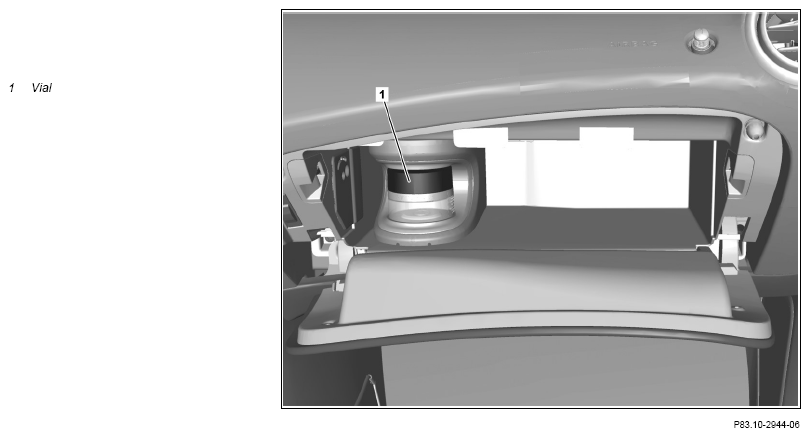

Fig 1: Flacon/Vial Of Fragrance System Components Location - Model 253 With Code P21 (Shown On Model 217.4)
| Remove | |||
| 1 | Open glove compartment. | ||
| 2 | Remove flacon (1). | ||
| Fill/replace | |||
| 3.1 | Fill flacon (1) of fragrance system. | Fill flacon (1) if requested by customer. | |
| 3.2 | Replace flacon (1) of fragrance system. | Replace flacon (1) if requested by customer. | |
| Install | |||
| 4 | Install flacon (1). | ||
| 5 | Close glove compartment. |
