Replace Spark Plugs - AP15.10-P-1580MCU

Engine 264 in model 167, 205, 213, 222, 238, 253, 257

Engine 264 in model 463

Courtesy of MERCEDES-BENZ USA

Shown on Engine 264.9 in model 205.077

Shown on Engine 264.9 in model 463.210

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on Engine 264.9 in model 205.077

Courtesy of MERCEDES-BENZ USA

Shown on Engine 264.9 in model 205.077

Shown on ignition coil in Engine 157.980

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Information on avoiding damage when replacing spark plugs		AH15.10-P-0002-02A
	Notes on avoiding damage to ignition system		AH15.10-P-0002-01V
	Remove
1	Switch electronic ignition lock control unit to position "0".

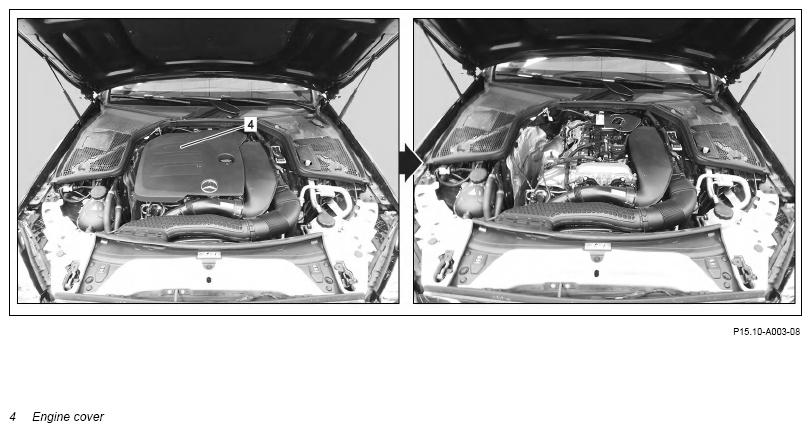

2	Remove Engine cover (4).	Engine 264 in model 167, 205, 253 Engine 264 in model 463	AP01.10-P-2405-01I
		Engine 264 in model 205, 253	AR01.10-P-2405MRI
		Engine 264 in model 222	AR01.10-P-2405MRJ
		Engine 264 in model 213, 238, 257	AR01.10-P-2405MRH

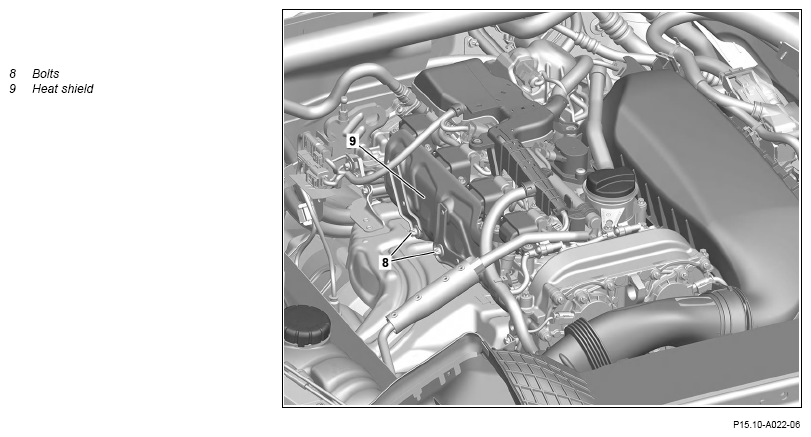

3	Remove screws (8).	Engine 264 in model 167 Engine 264 in model 463
4	Remove heat shield (9).	Engine 264 in model 167 Engine 264 in model 463

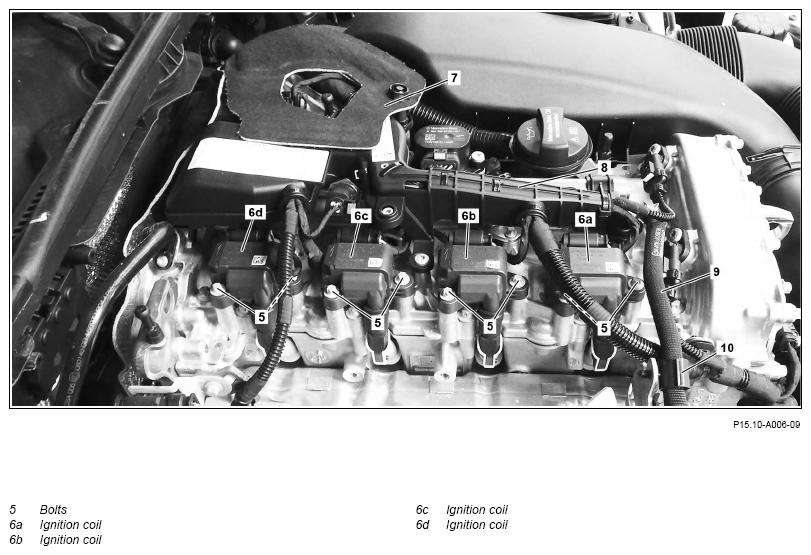

5	Remove bolts (5).
6	Remove ignition coils (6a, 6b, 6c, 6d) with lines connected and place to one side.	Do not crush or kink or subject electric lines to tension. Damage can otherwise occur.
	Clean
7	Use compressed air to blow out any dirt residue in the spark-plug recesses.
	Remove

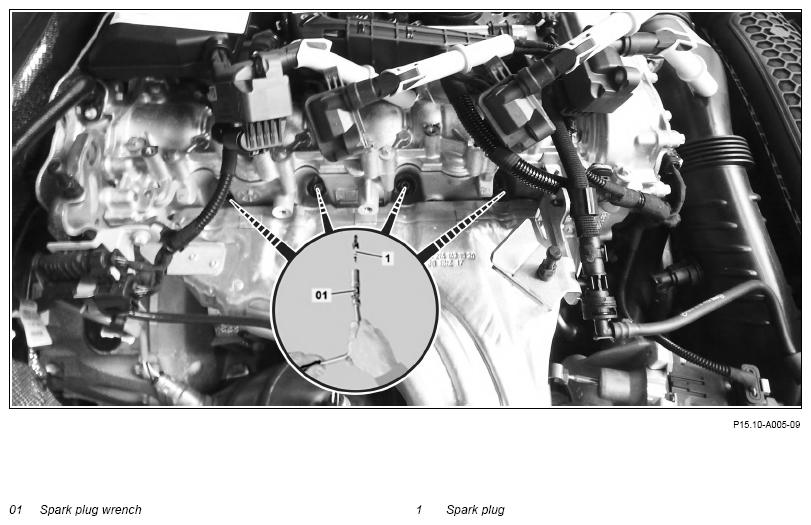

8	Unscrew spark plugs (1) using spark plug wrench (01) from cylinder head.	Spark plug wrench	Fig 1
	Install
9	Screw new spark plugs (1) using spark plug wrench (01) into cylinder head.	Spark plug to cylinder head	*BA15.10-P-1001-06A
		Spark plug wrench	Fig 1
	Check
10	Check spark plug connectors (2), ignition coils (6a, 6b, 6c, 6d) and ignition lines for damage, deformation and cracking.	If problems are determined, ↓ rectify the problems. After obtaining special order.
	Install

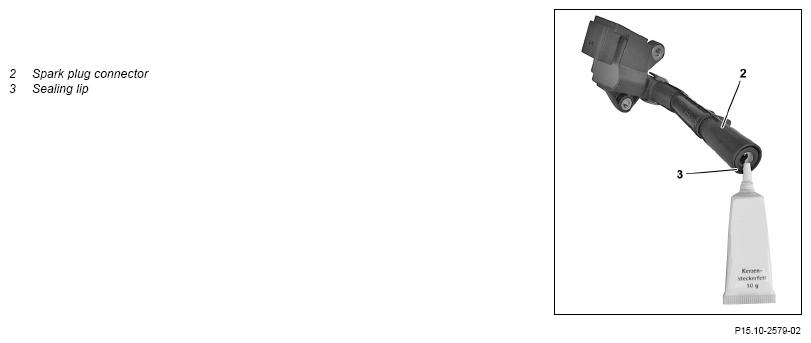

11	Apply coating of spark plug connector grease to sealing lips (3) of spark plug connectors (2) before installation.	Spark plug connector grease	*BR00.45-Z-1102-06A
12	Install ignition coils (6a, 6b, 6c, 6d) with lines connected.
13	Screw in screws (5).	Screw/bolt, ignition coil to cylinder head cover	*BA15.10-P-1001-04E
14	Install heat shield (9).	Engine 264 in model 167 Engine 264 in model 463
15	Screw in screws (8).	Engine 264 in model 167 Engine 264 in model 463 Screw, ignition system heat shield to cylinder head	*BA09.40-P-1014-02C
16	Install Engine cover (4).	Engine 264 in model 167, 205, 253 Engine 264 in model 463	AP01.10-P-2405-01I
		Engine 264 in model 205, 253	AR01.10-P-2405MRI
		Engine 264 in model 222	AR01.10-P-2405MRJ
		Engine 264 in model 213, 238, 257	AR01.10-P-2405MRH

Fig 1: Identifying Spark Plug Wrench (278 589 00 09 00)

Courtesy of MERCEDES-BENZ USA
