Replace Main Circuit Coolant - AP20.00-P-2082E
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 177, 264, 274, 276.8, 642, 651, 654, 656 in model 253

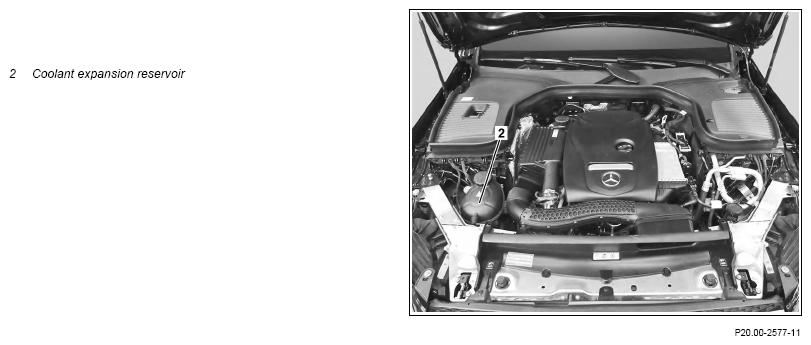

Shown on engine 274.920
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||
| 1 | Check coolant level in coolant expansion reservoir (2). | AP20.30-P-2050E | |
| Draining | |||
| 2 | Drain off coolant. | ||
| Engine 177 in model 253 | AR20.00-P-1142MNG | ||
| Engine 264 in model 253 | AR20.00-P-1142MRI | ||
| Engine 274.9, 276.8, 651 in model 253 | AR20.00-P-1142LW | ||
| Engine 642 in model 253 | AR20.00-P-1142OGY | ||
| Engine 654, 656 in model 253 | AR20.00-P-1142OLG | ||
| Pour in | |||
| 3 | Pour in new coolant. | ||
| Engine 177 in model 253 | AR20.00-P-1142MNG | ||
| Engine 264 in model 253 | AR20.00-P-1142MRI | ||
| Engine 274.9, 276.8, 651 in model 253 | AR20.00-P-1142LW | ||
| Engine 642 in model 253 | AR20.00-P-1142OGY | ||
| Engine 654, 656 in model 253 | AR20.00-P-1142OLG | ||
| Coolant specifications | BB00.40-P-0310-01A |
