Replace Low-Temperature Circuit Coolant - AP20.00-P-2083K
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 213, 222, 238, 253, 257

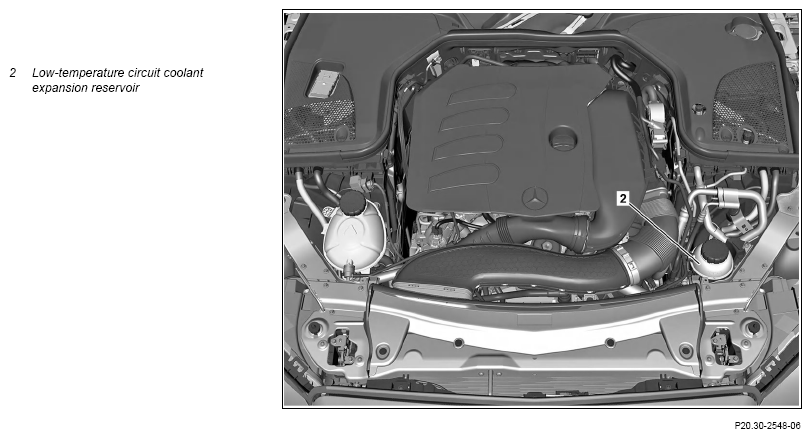

Shown on engine 264.9 in model 238.3
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||
| 1 | Check coolant level in low-temperature circuit coolant expansion reservoir (2). | AP20.30-P-2052C | |
| Draining | |||
| 2 | Drain coolant in low-temperature circuit. | ||
| Engine 264 in model 205, 253 | AR09.41-P-6834MRI | ||
| Engine 264 in model 213, 238, 257 | AR09.41-P-6834MRH | ||
| Engine 264 in model 222 | AR09.41-P-6834MRJ | ||
| Pour in | |||
| 3 | Pour new coolant into low-temperature circuit. | ||
| Engine 264 in model 205, 253 | AR09.41-P-6834MRI | ||
| Engine 264 in model 213, 238, 257 | AR09.41-P-6834MRH | ||
| Engine 264 in model 222 | AR09.41-P-6834MRJ | ||
| Coolant specifications | BB00.40-P-0310-01A |
