Replace Low-Temperature Circuit Coolant - AP20.00-P-2083E
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274 in model 172, 205, 253
Shown on engine 274.9 in model 212.0
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||

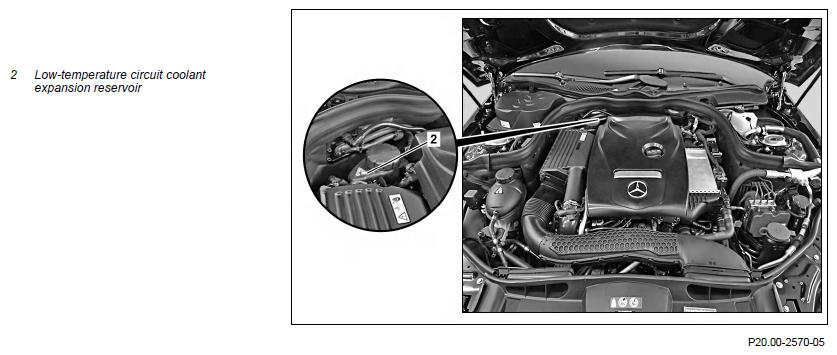

| 1 | Check coolant level in coolant expansion reservoir for low-temperature circuit (2). | AP20.30-P-2052L | |
| Drain off | |||
| 2 |
Drain coolant in low-temperature circuit. | Engine 274 in model 172 | AR09.41-P-6834CD |
| Engine 274 in model 205, 253 | AR09.41-P-6834LW | ||
| Pour in | |||
| 3 |
Pour new coolant into low-temperature circuit. | Engine 274 in model 172 | AR09.41-P-6834CD |
| Engine 274 in model 205, 253 | AR09.41-P-6834LW | ||
| Coolant specifications | BB00.40-P-0310-01A |
