Check Visible Area Of Poly-V Belt For Wear - AP13.22-P-1352F
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 253
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Check | |||

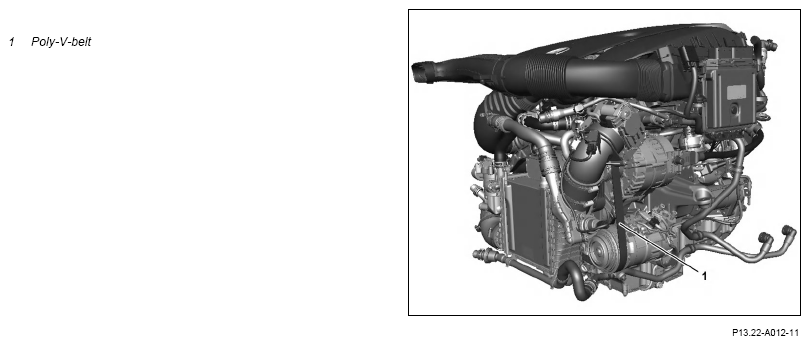

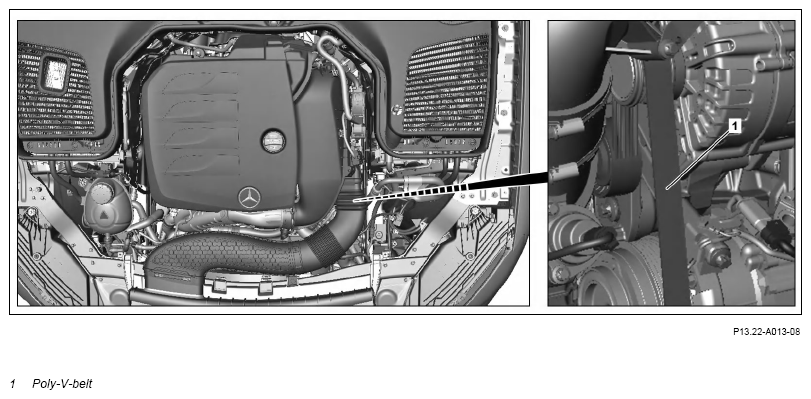

| 1 | Check poly-V-belt (1) from above in visible areas for wear and damage, and compare with damage profiles. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If wear or damage is detected, ↓ Replace poly-V-belt (1). |
AP13.22-P-1351-01A |
| Remove | |||

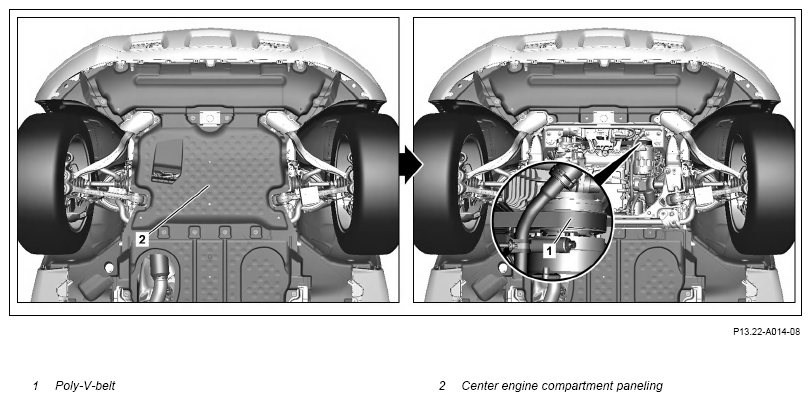

| 2 | Remove center engine compartment lining (2). | ||
| AR61.20-P-1105LW | |||
| Check | |||
| 3 | Check poly-V-belt (1) in areas visible when vehicle is raised for wear and damage, and compare with damage profiles. | Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1 If wear or damage is detected, ↓ Replace poly-V-belt (1). |
AP13.22-P-1351-01A |
| Install | |||
| 4 | Install center engine compartment lining (2). | ||
| AR61.20-P-1105LW |
