Transfer Case - Oil Change - AP28.00-P-2801A

MODEL 205, 218, 238 (except 238.361/461), 257 (except 257.361) with transmission 725.0

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 213 (except 213.061/261), 217, 222 with transmission 725.0 (except 725.09)

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 253 with transmission 725.0 (except 725.096)

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

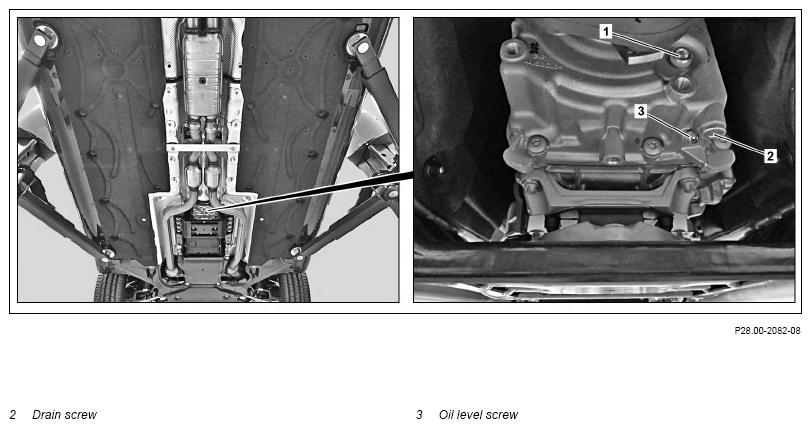

Shown on model 218.991 with oil level glass (3)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Preparatory activity
1	Lift vehicle with lifting platform.	Model 205, 218, 238 (except 238.361/461), 257 (except 257.361) with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 (except 213.061/261), 217, 222 with transmission 725.0 (except 725.09) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with transmission 725.0 (except 725.096) with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 205, 238 (except 238.361/461) with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 (except 213.061/261) with transmission 725.0 (except 725.09) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with transmission 725.0 (except 725.096) with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR00.60-P-1002LWG
		Model 217, 222 with transmission 725.0 (except 725.09) with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR00.60-P-1000LF
		Vehicle must be horizontal. Otherwise, the transfer case is not filled correctly and a wrong oil filling capacity could lead to leak tightness and material damage.	AR00.60-P-1006A
	Clean
2	Clean area surrounding drain screw (2).
3	Clean area surrounding oil level glass (3).	If present.
	Remove
4	Unscrew oil level screw (3) up to end stop on drain screw (2).	If present.
5	Remove drain screw (2) from transfer case.
	Drain off
6	Pull out overflow pipe using extraction hook and drain oil from transfer case.	Collect escaping oil in a suitable container. Damage can otherwise occur.
		Extraction hook	Fig 3
	Clean
7	Clean threaded holes in transfer case.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
8	Insert new overflow pipe into transfer case and screw in using old drain screw (2) until the overflow pipe latches audibly into place.
	Remove
9	Unscrew old drain screw (2) from transfer case.	Dispose of old drain screw (2). Otherwise, this may lead to leakage and consequential damage.
	Install
10	Screw the adapter with sealing ring into threaded hole of drain screw (2).	Adapter	Fig 2
	Pour in
11	Add specified oil filling capacity to hand pump.	Transfer case oil	*BF28.10-P-1001-01F
		Hand pump	Fig 1
12	Connect hand pump to the adapter.	Hand pump	Fig 1
		Adapter	Fig 2
13	Fill transfer case.	Transfer case oil	*BF28.10-P-1001-01F
		Hand pump	Fig 1
14	Disconnect hand pump from the adapter.	Drain off excess oil. Damage can otherwise occur.
		Hand pump	Fig 1
		Adapter	Fig 2
		If less than 50 ml of oil flow out of the transfer case, ↓ Add 100 ml to the hand pump and repeat operation step 12. If more than 50 ml of oil flows out of the transfer case ↓ the transfer case is sufficiently filled, continue with operation step 15.
	Remove
15	Unscrew adapter with sealing ring from threaded hole of drain screw (2).	Adapter	Fig 2
	Clean
16	Clean threaded hole of drain screw (2) in transfer case.	Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
17	Tighten new drain screw (2) on transfer case.	Replace drain screw (2) each time it is removed. Otherwise, this may lead to leakage and consequential damage.
		Drain screw to transfer case	*BA28.10-P-1003-01G
18	Tighten oil level screw (3).	If present. Oil level sight glass to transfer case	*BA28.10-P-1007-01G
	Finishing activity
19	Lower vehicle with vehicle lift.	Model 205, 218, 238 (except 238.361/461), 257 (except 257.361) with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 (except 213.061/261), 217, 222 with transmission 725.0 (except 725.09) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with transmission 725.0 (except 725.096) with code M005 (Vehicles with 4MATIC/all-wheel drive)
		Model 205, 238 (except 238.361/461) with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 (except 213.061/261) with transmission 725.0 (except 725.09) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with transmission 725.0 (except 725.096) with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR00.60-P-1002LWG
		Model 217, 222 with transmission 725.0 (except 725.09) with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR00.60-P-1000LF
			AR00.60-P-1006A

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (213 589 00 90 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
