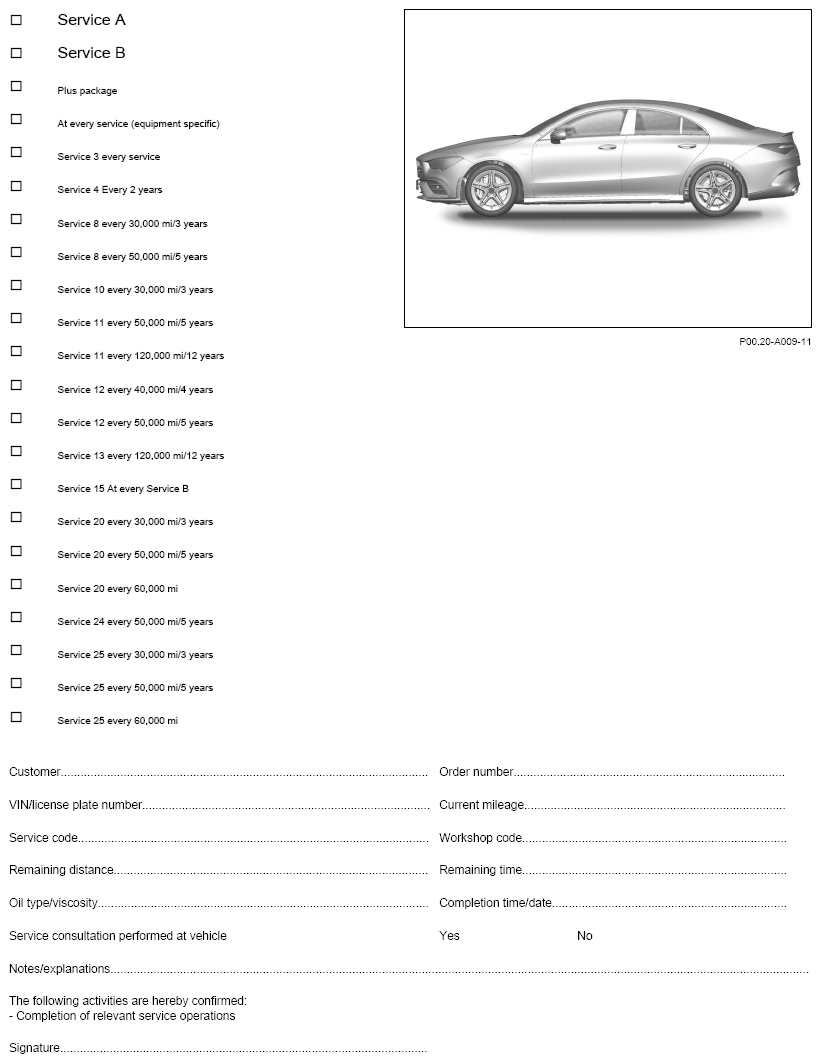

Overview For Service Sheet, USA - AP00.20-P-1240CL

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118

Courtesy of MERCEDES-BENZ USA

A	B		Input condition not OK:	ⓧ
Completed
[X]	[X]

		Service reception
□	□	The reception report for service on the vehicle is available in completed form.	To be performed by the Service Advisor (where market-specific conditions require).
			Fully process all acceptance items and the maintenance items listed in the service sheet, only then is the service scope completely performed.	◦	AP00.20-P-0009Z
		Brake system
	□	Perform brake test and enter result in table.		◦	AP42.00-P-4290BA
		Vehicle exterior
	□	Check exterior lighting for proper operation.		◦
	□	Check function of headlamp range adjustment.		◦	AP82.10-P-8252EW
			Vehicles with dynamic LED headlamps or with the headlamp range adjuster on the exterior lights switch.
	□	Check and correct headlamp adjustment.		◦	AP82.10-P-8250EW
			The adjustment of headlamps on vehicles with level control system or dynamic LED headlamps is to be invoiced as an additional operation.		AP82.10-P-8260Y
	□	Tank filler recess: Check seal.		◦
□	□	Check charging cable and vehicle socket for mechanical damage.		◦	AP47.10-P-4752A
			With code ME08 (Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN)) or with code ME10 (Hybrid vehicle (plug-in, PHEV))		AP54.10-P-5458E
		Vehicle interior
	□	Check windshield wipers, windshield washer system for proper operation.	Model 118.3	◦	AP82.35-P-8252H
			Model 118.6		AP82.35-P-8252HB
	□	Replace activated charcoal particle filter.
					AP83.00-P-8350MFA
		Engine compartment
□	□	Brake system: Check fluid level.		◦
□		Check low-temperature circuit coolant.		◦	AP42.10-P-4210D
□		Check coolant level in high-voltage battery circuit.	Engine 139	◦	AP20.30-P-2052P
			With code ME08 (Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN)) or with code ME10 (Hybrid vehicle (plug-in, PHEV))		AP08.50-P-2053B
□		Check all visible parts in engine compartment for damage and fluid loss.		◦	AP00.20-P-0055I
□		Check poly-V-belt in visible area for signs of wear.		◦
			Engine 139		AP13.22-P-1352C
			Engine 260, 282, 608, 654		AP13.22-P-1352EW
		Underside of vehicle
□		Check all visible parts of vehicle underside for damage and fluid loss.		◦
			The country-specific regulations for mobility and body shell complaints apply.		AP00.20-P-0054N
□		Check condition of steering and tie rods.		◦
					AP46.00-P-4651G
□		Check condition of front axle and front axle joints.		◦
					AP33.10-P-3358G
□		Check condition of propeller shaft and flex disks.		◦
			Model 118 (except 118.353/354/653/654) with code M005 (Vehicles with 4MATIC/all-wheel drive)		AP41.10-P-4152C
□	□	Check condition of propeller shaft and flex disks.	Model 118.353/354/653/654	◦	AP41.10-P-4152C
□		Check condition of rear axle and rear axle ball joints.	With code U54 (Torsion-beam axle)	◦	AP35.20-P-3552G
			With code U55 (Multi-link axle)		AP35.20-P-3552H
□		Check condition of suspension struts or shock absorbers and springs.		◦
					AP32.25-P-3255P
□		Check tires for damage and crack formation, and enter result in table.		◦
					AP40.10-P-4051EW
		Tires
		Plus package
□	□	Correct tire pressure and enter set tire pressure in table.		◦	AP40.15-P-4061A
		Trunk
		Plus package
□	□	Check/correct tire pressure spare wheel and enter set tire pressure into table.		◦
			Vehicles with spare wheel.		AP40.15-P-4061A
□	□	Check TIREFIT tire sealant.		◦
			Vehicles with TIREFIT.
					AP40.10-P-4054R
			Enter expiration date here:
			Replace TIREFIT, invoice as additional operation.
□	□	Check first-aid kit (soft sided).		◦
					AP68.00-P-6850EW
			Enter expiration date here:
			Replace first aid bag, invoice as an additional operation.
□	□	Check trunk lighting for proper operation.		◦
		Engine compartment
		Plus package
□	□	Windshield washer system: Check/correct fluid level.	When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8210D
		Vehicle interior
		Plus package
□	□	Check lamps in instrument cluster and interior lighting for proper operation.		◦	AP54.30-P-5453F
		Vehicle interior
		At every service (equipment specific)
□	□		Replace battery for KEYLESS-GO key.
			After consultation with customer. With code 889 (KEYLESS-GO)
		External refueling
		At every service (equipment specific)
□	□		AdBlue® container: Top up fluid level.
			After consultation with customer. With code U79 (BlueTEC (SCR) diesel exhaust treatment Generation 3)
					AP49.20-P-0100A
		Engine compartment
		Service 3 every service
□	□		Engine: Change oil and oil filter.
			Engine 139		AP18.00-P-0101MFC
			Engine 260		AP18.00-P-0101MFA
			Engine 282 except code ME08 (Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN)) and except code ME10 (Hybrid vehicle (plug-in, PHEV))		AP18.00-P-0101MFB
			Engine 282 with code ME08 (Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN)) or with code ME10 (Hybrid vehicle (plug-in, PHEV))		AP18.00-P-0101MFE
			Engine 608		AP18.00-P-0101MFD
			Engine 654		AP18.00-P-0101FA
		Engine compartment
		Service 4 Every 2 years
□	□	Brake system: Replace brake fluid.
					AP42.00-P-4280E
		Engine compartment
		Service 8 every 30, 000 mi/3 years
□	□	Replace air filter element.
			Engine 139		AP09.10-P-0980W
		Engine compartment
		Service 8 every 50, 000 mi/5 years
□	□	Replace air filter element.
			Engine 260		AP09.10-P-0980N
			Engine 282		AP09.10-P-0980P
			Engine 608		AP09.10-P-0980O
			Engine 654		AP09.10-P-0980AO
		Vehicle interior
		Service 10 every 30, 000 mi/3 years
□	□		Panoramic sliding sunroof: Clean and lubricate guide mechanism.
			With code 413 (Panoramic sliding sunroof/glass roof)
					AP77.20-P-7732A
		Underside of vehicle
		Service 11 every 50, 000 mi/5 years
□	□		Replace fuel filter.
			Engine 608, 654		AP47.20-P-0780J
		Underside of vehicle
		Service 11 every 120, 000 mi/12 years
□	□	Replace fuel filter.
			Engine 139, 260, 282		AP47.20-P-0780G
		Engine compartment
		Service 12 every 40, 000 mi/4 years
□	□	Replace spark plugs.
			Engine 139		AP15.10-P-1580J
		Engine compartment
		Service 12 every 50, 000 mi/5 years
□	□	Replace spark plugs.	Engine 260		AP15.10-P-1580F
			Engine 282		AP15.10-P-1580I
		Underside of vehicle
		Service 13 every 120, 000 mi/12 years
□	□	Replace coolant in main circuit.	Engine 139, 260, 282, 608, 654		AP20.00-P-2082R
□	□	Replace low-temperature circuit coolant.	Engine 139		AP20.00-P-2083M
		Vehicle exterior
		Service 15 At every Service B
	□	Trailer hitch: Check condition and operation.	With code 550 (Trailer hitch)	◦	AP31.11-P-3152B
		Underside of vehicle
		Service 20 every 30, 000 mi/3 years
□	□	Dual-clutch transmission: Change oil and oil filter.	Transmission 724.115		AP27.00-P-2707MFA
		Underside of vehicle
		Service 20 every 50, 000 mi/5 years
□	□	Dual-clutch transmission: Perform oil change.	Transmission 700.42 with code 429 (7-speed automatic dual-clutch transmission) with code 809 (Model year 2019)		AP27.00-P-2706MFA
		Underside of vehicle
		Service 20 every 60, 000 mi
□	□	Dual-clutch transmission: Perform oil change.	Transmission 700.42 with code 429 (7-speed automatic dual-clutch transmission) except code 809 (Model year 2019)		AP27.00-P-2706MFA
□	□	Dual-clutch transmission: Change oil and oil filter.	Transmission 724.0 with code 429 (7-speed automatic dual-clutch transmission)		AP27.00-P-2707NK
			Transmission 724.1 (except 724.115) with code 426 (8-speed automatic dual-clutch transmission)		AP27.00-P-2707MFA
		Engine compartment
		Service 24 every 50, 000 mi/5 years
□	□	Replace toothed belt.	Engine 608		AP05.10-P-0580A
		Underside of vehicle
		Service 25 every 30, 000 mi/3 years
□	□	Rear axle: Change oil.	Model 118.353/354/653/654		AP35.00-P-3501E
		Underside of vehicle
		Service 25 every 50, 000 mi/5 years
□	□	Rear axle: Change oil.	Model 118 (except 118.351/353/354/651/653/654) with code 809 (Model year 2019) or with code 800 (Model year 2020) or with code 801 (YoM 20/1)		AP35.00-P-3501MFA
			Model 118.351/651 with code 809 (Model year 2019) or with code 800 (Model year 2020) or with code 801 (Modification year 20/1)		AP35.00-P-3501I
		Underside of vehicle
		Service 25 every 60, 000 mi
□	□	Rear axle: Change oil.
			Model 118 (except 118.351/353/354/651/653/654) with code M005 (Vehicles with 4MATIC/all-wheel drive) with code 051 (Modification year 20/2) or with code 802 (Modification year 21/1) or with code 803 (Modification year 22/1) or with code 804 Modification year 23/1) or with code 805 (Model year 2025)		AP35.00-P-3501MFA
			Model 118.351/651 with code 051 (Modification year 20/2) or with code 802 (Modification year 21/1) or with code 803 (Modification year 22/1) or with code 804 (Modification year 23/1) or with code 805 (Model year 2025)		AP35.00-P-3501I

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK.
Condition not OK.

SET TIRE PRESSURE IN KPA OR PSI (100 KPA = 1 BAR)

	Front axle	Rear axle	Spare tire
kPa/psi
