Adjust Crank Window On Front Door - AR72.10-P-1950RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from contusions to hands if window glass is not secured	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove

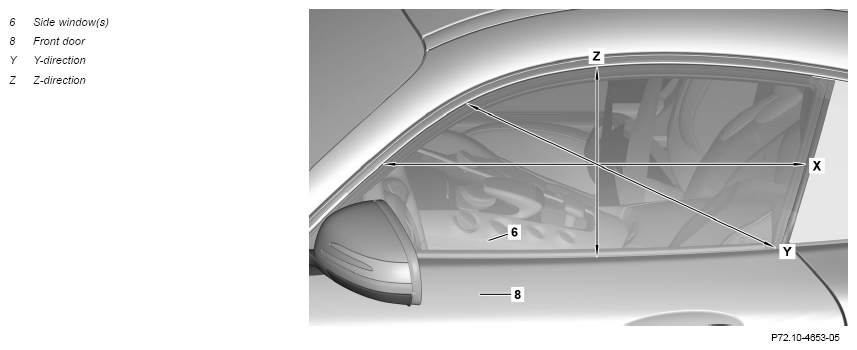

1	Check adjustment of left and right front door (8), correct if necessary		AR72.10-P-0550RG
2	Remove door trim on left and right front door (8)	Ensure side window (6) is fully raised during removal of door trim.	AR72.10-P-1000RG
	Adjust side window in front door
3	Check preload of side window (6), adjust if required	Model 190.4	AR67.30-P-0100-02RGR
		Model 190.3	AR72.10-P-1950-03RG
		Bolt, glass pane to power window	*BA72.10-P-1017-01T
		Nut, power window to inner door panel	*BA72.10-P-1009-01T
		Feeler gauge	Fig 2
		Socket	Fig 3
		Socket wrench	Fig 1
4	Check transition in Y-direction (Y) between side window (6) and triangular window, adjust if required	Model 190.3	AR67.30-P-4200-03RG
		Lower transition measurement position in direction (Y) must be adjusted via setting screw of triangular window.	AR67.30-P-4200RG
		Nut/bolt, rear side window to body	*BA67.30-P-1001-01D
		Socket wrench	Fig 1
		Feeler gauge	Fig 2
5	Check basic setting of side window (6), correct if required	Model 190.4	AR67.30-P-0100-01RGR
		Model 190.3	AR72.10-P-1950-06RG
		Helper required. Gap dimension, side window on door to soft top side	*BE60.00-P-1030-01EA
		Gap dimension, door side window to rear side window	*BE60.00-P-1010-01EA
		Bolt, glass pane to power window	*BA72.10-P-1017-01T
		Feeler gauge	Fig 2
6	Check Z-direction (Z) of side window (6), adjust if required		AR72.10-P-1950-05RG
	Install
7	Install door trim on left and right front door		AR72.10-P-1000RG
8	Normalize power window of side window (6)
	Clean
9	Clean side window (6) with a suitable means

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1010-01EA	Gap dimension, door side window to rear side window	Dimension "J"	mm	10 (±1)	-
		See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1030-01EA	Gap dimension, side window on door to soft top side	Dimension "J1"	mm	-	8 (+1/-1, 5)
		See		-	AR60.00-P-0700-01RG

SIDE WINDOW(S)

Number	Designation		Model 190
BA67.30-P-1001-01D	Nut/bolt, rear side window to body	Nm	8

FRONT DOOR

Number	Designation		Model 190
BA72.10-P-1009-01T	Nut, power window to inner door panel	Nm	13

FRONT DOOR

Number	Designation		Model 190
BA72.10-P-1017-01T	Bolt, glass pane to power window	Nm	8

Fig 1: Identifying Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket (209 589 00 09 03)

Courtesy of MERCEDES-BENZ USA
