Front Window Basic Setting - AR72.10-P-1950-06RG

Model 190

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Mark measuring positions

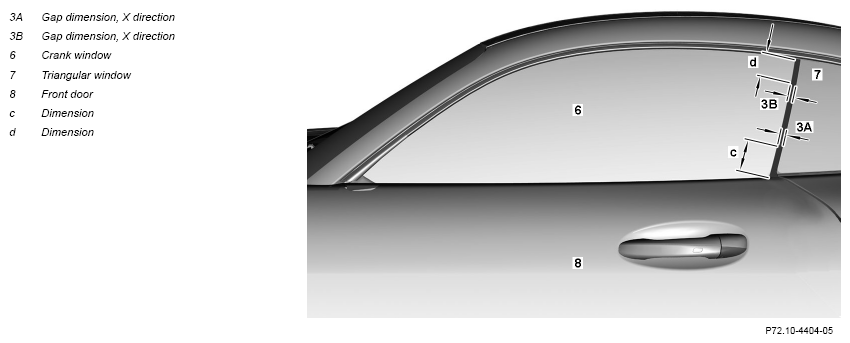

1. Mark measuring positions (3A, 3B) on crank window (6) with wax pencil.

   Use depth gauge to measure.

   Otherwise the measurement results are not sufficiently accurate.

   Measuring position in X-direction (3A) dimension (c) = 25 mm measured from beltline on door.

   Measuring position in X-direction (3B) dimension (d) = 30 mm measured from edge of seal.

   Check X-direction

2. Completely roll up crank window (6).

   Measuring position of X-direction, dimension (3A) = 10.0 mm (± 1.0 mm)

3. Switch off ignition.
4. Check gap dimension at measuring position X-direction (3A, 3B), adjust if necessary.

   Measuring position of X-direction, dimension (3B) = 10.0 mm (± 1.0 mm)

   Courtesy of MERCEDES-BENZ USA

   Adjusting X-direction

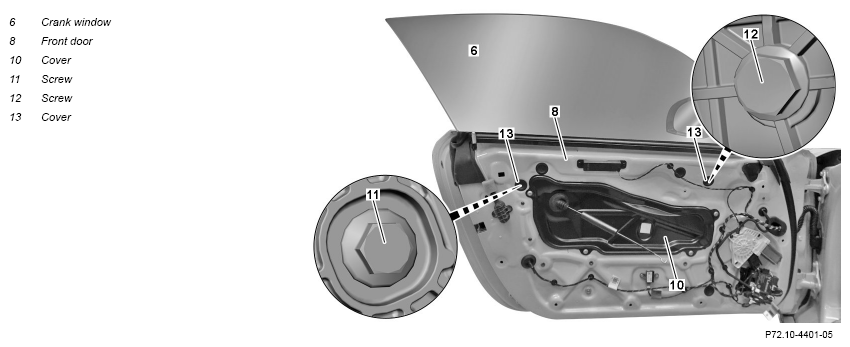

5. Remove covers (13).
6. Remove bolts (11, 12).
7. Position crank window (6).

   Secure padding on crank window (6) on clamping jaws. Ensure that crank window makes good contact with calmping jaws.

8. Tighten bolts (11, 12). 7
9. Again check gap dimensions (3A, 3B), repeat setting if required.
