Adjust Tension Of Rear Side Window - AR67.30-P-4200-03RG

Model 190

Fig 1: Identifying Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

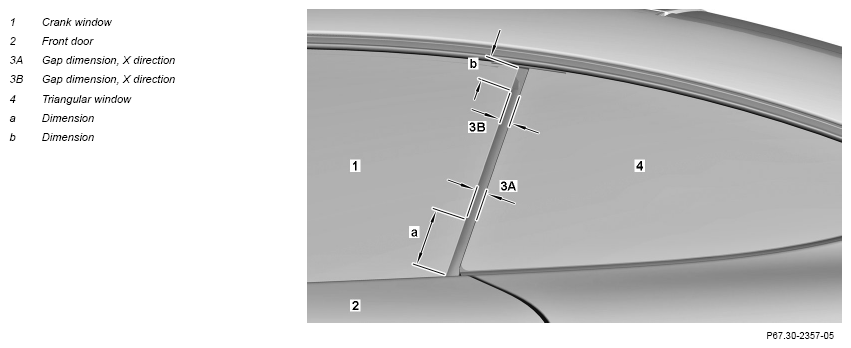

Check X-direction

1. Completely roll up crank window (1).
2. Check gap dimension at measuring position X-direction (3A, 3B) with , adjust if necessary.

   Measuring position X-direction dimension (3A, 3B) = 10, 0 mm (±1, 0 mm)

   Courtesy of MERCEDES-BENZ USA

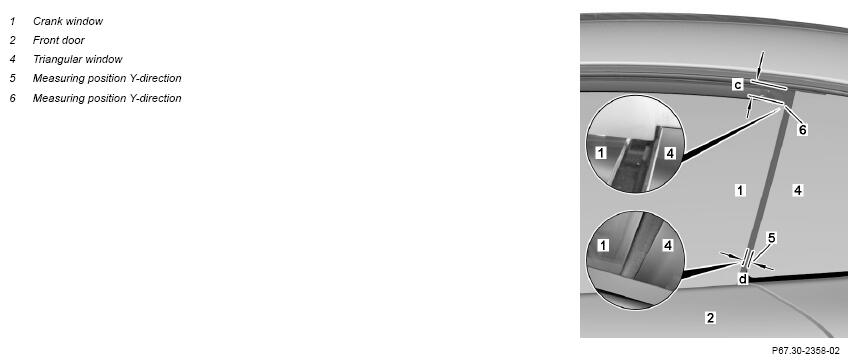

   Checking Y-pretension

3. Check transition between crank window (1) and triangular window (4) with , adjust if necessary.

   Measuring position Y-direction (5) dimension (d) = 0, 0 mm (±1, 0 mm)

4. Close front door (2) and lower crank window (1) by dimension (c).

   Dimension (c) = 20 mm

5. Check distance on measuring position Y-direction (6) between crank window (1) and triangular window (4) with .

   Measuring position Y-direction (6) = min. 10 mm.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Adjust

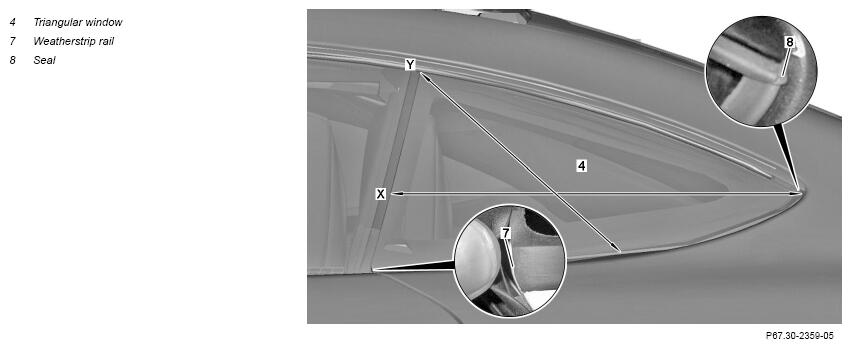

6. Check position of triangular window (4) on weatherstrip rail (7) and seal (8) as well as gap dimension between triangular side window (4) and side window, if necessary repeat settings.

   Measuring position: 30 mm from sealing edge, gap dimension: 10 mm ± 1 mm)

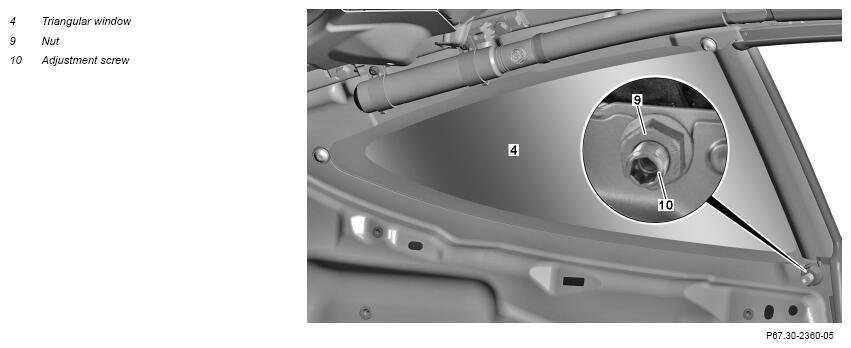

7. Loosen nut (9) with socket wrench and adjust position of triangular window (4) by turning adjustment screw (10) to corresponding direction.
8. Turning the adjustment screw (10) clockwise tilts the triangular window (4) inward in the lower area increasing the initial tension. Turning the adjustment screw (10) counterclockwise tilts the triangular window (4) outward in the lower area decreasing the initial tension.
9. Tighten jam nut on adjustment screw (10) .

Observe specified tightening torque.
