Adjusting Rear Side Windows - AR67.30-P-4200RG

Model 190.3

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from contusions to hands if window glass is not secured	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
	Remove
1	Unclip side paneling in rear upward on driver and passenger side and place to one side	t is not necessary to remove rear side paneling.	AR68.30-P-4780RG
2	Remove left or right C-pillar trim		AR68.30-P-4490RG
3	Remove left or right A-pillar trim		AR68.30-P-4050RG
	Adjust
4	Check side window (1) on front door on left and right, adjust if necessary		AR72.10-P-1950RG

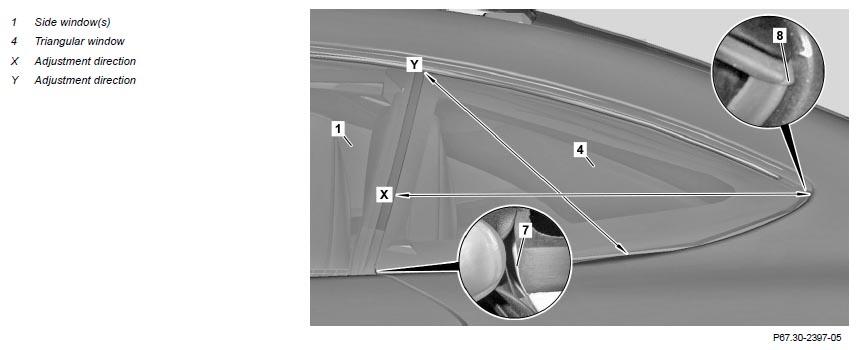

5	Check transition between adjustment direction (Y) and adjustment direction (X) between side window (1) and triangular window (4), adjust if necessary		AR67.30-P-4200-03RG
		Make sure that the vehicle is not lifted with vehicle lift for basic setting of triangular window (4). Gap dimension, door side window to rear side window	*BE60.00-P-1010-01EA
		Nut/bolt, rear side window to body	*BA67.30-P-1001-01D
		Socket wrench	Fig 2
		Feeler gauge	Fig 1
	Install
6	Install left or right A-pillar trim		AR68.30-P-4050RG
7	Install left or right C-pillar trim		AR68.30-P-4490RG
8	Clip on side paneling in rear on driver and passenger side		AR68.30-P-4780RG

GAP DIMENSIONS

Number	Designation			Model 190.3
BE60.00-P-1010-01EA	Gap dimension, door side window to rear side window	Dimension "J"	mm	10 (±1)
		see		AR60.00-P-0700-01RG

SIDE WINDOW(S)

Number	Designation		Model 190
BA67.30-P-1001-01D	Nut/bolt, rear side window to body	Nm	8

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA
