Remove/Install Front Door Lining - AR72.10-P-1000RG

Model 190

Courtesy of MERCEDES-BENZ USA

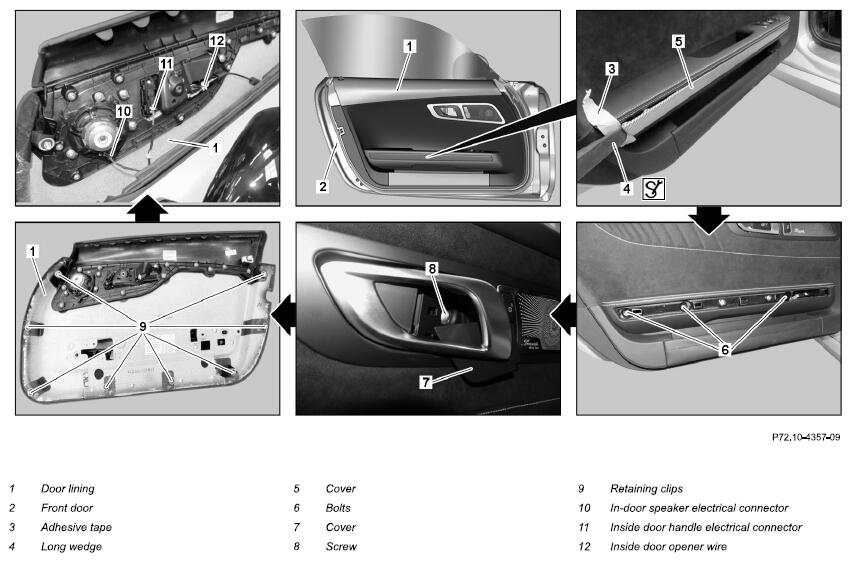

Shown on model 190.3 other than code M032 (black series version)

Courtesy of MERCEDES-BENZ USA

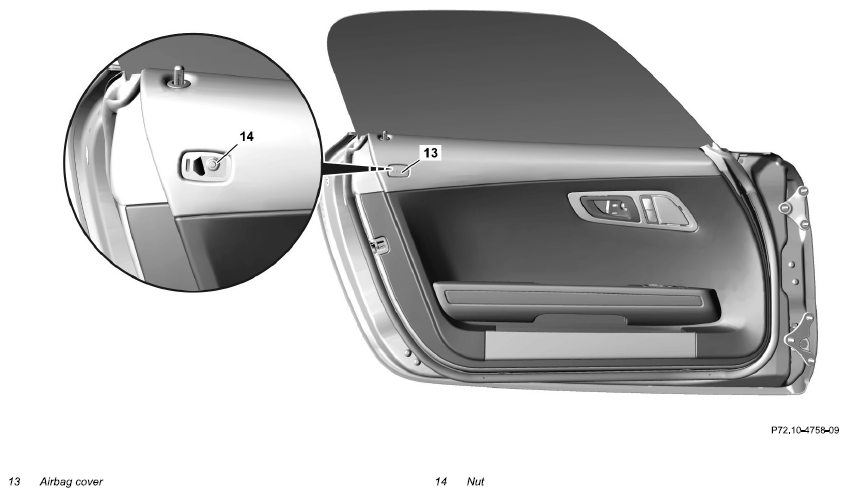

Shown on model 190.4

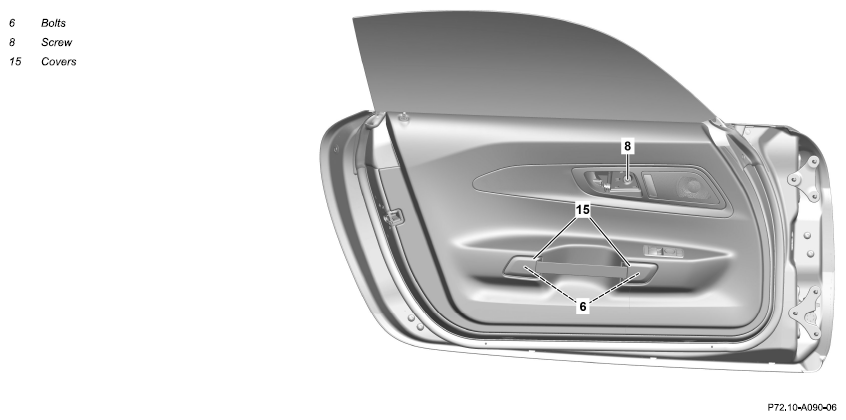

Shown on model 190.3 with code M032 (black series version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch on ignition and lower corresponding front door side window.
2	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
3	Affix suitable tape (3) to armrest.	Model 190 except code M032 (Black Series version)
4.1	Remove panel (5).	Model 190 except code M032 (Black Series version) Unclip cover (5) from front door (2), as shown, starting at rear and working forward. Otherwise cover (5) can be damaged.
		Dismantling tool	Fig 1
4.2	Remove covers (15).	Model 190 with code M032 (Black Series version)
		Dismantling tool	Fig 1
5	Remove screws (6).
6	Remove cover (7).	Dismantling tool	Fig 1
7	Remove screw (8).
8	Remove airbag cover (13) and remove nut (14).	Model 190.4
		Nut, head airbag to driver door/front passenger door	*BA91.60-P-1001-01N
		Dismantling tool	Fig 1
9	Unclip door lining (1) at retaining clips (9) from front door (2).	Do not crush or kink or subject lines to tension. This will result in damage to the lines which may impair their functional capability. Position long wedge (4) in each case at retaining clips (9). Otherwise the retaining tabs on the retaining clip (9) of the door lining (1) can tear off.
		Long wedge	Fig 2
10	Unclip door lining (1) from front door (2) until indoor speaker electrical connector (10), inside door opener electrical connector (11) and inside door opener wire (12) can be accessed.	Do not crush or kink or subject lines to tension. This will result in damage to the lines which may impair their functional capability.
		Long wedge	Fig 2
11	Release and disconnect in-door speaker electrical connector (10) and inside door opener electrical connector (11).
12	Detach wire (12) at door handle.
13	Remove door lining (1).	Long wedge	Fig 2
	Check
14	Check retaining clips (9) of door lining (1) for damage.	If retaining clips (9) are damaged: ↓ Replace corresponding retaining clips (9).
15	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
