Hoods, Doors And Lids Body Gap Dimensions - Ar60.00-P-0700-01RG

Model 190

MODIFICATION NOTES

26.01.2017	Document for model 190.4 supplemented
21.02.2017	Gap dimension, longitudinal member panel to fender/sidewall panel	Model 190.3	BE60.00-P-1009-01EA
21.02.2017	Longitudinal beam cladding for fender/side panel paneling	Model 190.3	BE60.00-P-1009-01EA

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1001-01EA	Gap dimension, engine hood to bumper	Dimension "A"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1001-01EA	Gap dimension, engine hood to bumper	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1002-01EA	Gap dimension, fender to engine hood	Dimension "B"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1002-01EA	Gap dimension, fender to engine hood	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1003-01EA	Gap dimension, fender to lamp unit	Dimension "C"	mm	2, 5 (±1)	3 (±0, 5)
BE60.00-P-1003-01EA	Gap dimension, fender to lamp unit	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1004-01EA	Gap dimension, lamp unit to bumper	Dimension "D"	mm	2, 5 (±1)	2, 5 (±0, 5)
BE60.00-P-1004-01EA	Gap dimension, lamp unit to bumper	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1005-01EA	Gap dimension, fender to bumper lamp unit	Dimension "E"	mm	0 (+0, 5)	0 (+0, 5)
BE60.00-P-1005-01EA	Gap dimension, fender to bumper lamp unit	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1006-01EA	Gap dimension, air grille to engine hood	Dimension "F"	mm	0, 5 (±0, 5)	0, 5 (±0, 5)
BE60.00-P-1006-01EA	Gap dimension, air grille to engine hood	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1007-01EA	Gap dimension, fender to door paneling	Dimension "G"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1007-01EA	Gap dimension, fender to door paneling	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation				Model 190.3
BE60.00-P-1008-01EA	Gap dimension, sidewall panel to door paneling	Dimension "H"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1008-01EA	Gap dimension, sidewall panel to door paneling	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1009-01EA	Gap dimension, longitudinal member panel to fender/sidewall panel	Dimension "I"	mm	0 (+0, 5)	0, 5 (±0, 5)
BE60.00-P-1009-01EA		See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1010-01EA	Gap dimension, door side window to rear side window	Dimension "J"	mm	10 (±1)	-
BE60.00-P-1010-01EA	Gap dimension, door side window to rear side window	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1011-01EA	Gap dimension, sidewall panel to E-line trim strip	Dimension "K"	mm	1 (±0, 5)	-
BE60.00-P-1011-01EA	Gap dimension, sidewall panel to E-line trim strip	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1012-01EA	Gap dimension, roof trim strip to windshield	Dimension "L"	mm	2, 5 (±1)	-
BE60.00-P-1012-01EA	Gap dimension, roof trim strip to windshield	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1013-01EA	Gap dimension, roof trim strip to liftgate	Dimension "M"	mm	4, 5 (±1)	-
BE60.00-P-1013-01EA	Gap dimension, roof trim strip to liftgate	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1014-01EA	Gap dimension, sidewall panel to roof trim strip	Dimension "N"	mm	2, 5 (±1)	-
BE60.00-P-1014-01EA	Gap dimension, sidewall panel to roof trim strip	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1015-01EA	Gap dimension, air grille to fender	Dimension "O"	mm	0, 5 (±0, 5)	0, 5 (±0, 5)
BE60.00-P-1015-01EA	Gap dimension, air grille to fender	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1016-01EA	Gap dimension, sidewall panel to E-line trim strip	Dimension "P"	mm	1 (±0, 5)	-
BE60.00-P-1016-01EA	Gap dimension, sidewall panel to E-line trim strip	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1017-01EA	Gap dimension, roof/roof frame to windshield	Dimension "Q"	mm	3 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1017-01EA	Gap dimension, roof/roof frame to windshield	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1018-01EA	Gap dimension, roof to liftgate rear window	Dimension "R"	mm	5 (±1, 5)	-
BE60.00-P-1018-01EA	Gap dimension, roof to liftgate rear window	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1019-01EA	Gap dimension, roof to roof trim strip	Dimension "S"	mm	3 (±0, 5)	-
BE60.00-P-1019-01EA	Gap dimension, roof to roof trim strip	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1020-01EA	Gap dimension, side wall paneling to tailgate/trunk lid/rear spoiler	Dimension "T"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1020-01EA		See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1021-01EA	Gap dimension, sidewall panel to taillamp	Dimension "U"	mm	1 (±1)	1 (±1)
BE60.00-P-1021-01EA	Gap dimension, sidewall panel to taillamp	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1022-01EA	Gap dimension, tailgate/trunk lid to bumper	Dimension "V"	mm	4, 5 (±1)	4, 5 (±1)
BE60.00-P-1022-01EA	Gap dimension, tailgate/trunk lid to bumper	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1023-01EA	Gap dimension, tank cap	Dimension "W"	mm	2, 5 (±0, 5)	2, 5 (±0, 5)
BE60.00-P-1023-01EA	Gap dimension, tank cap	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1024-01EA	Gap dimension, tailgate/trunk lid to rear spoiler	Dimension "X"	mm	2, 5 (±0, 5)	2, 5 (±0, 5)
BE60.00-P-1024-01EA	Gap dimension, tailgate/trunk lid to rear spoiler	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1025-01EA	Gap dimension, rear window to liftgate	Dimension "Y"	mm	3 (±1)	-
BE60.00-P-1025-01EA	Gap dimension, rear window to liftgate	See		AR60.00-P-0700-01RG	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1026-01EA	Gap dimension, sidewall panel to bumper	Dimension "Z"	mm	0, 5 (±0, 5)	0 (+0, 5)
BE60.00-P-1026-01EA	Gap dimension, sidewall panel to bumper	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1027-01EA	Gap dimension, bottom of rear lamp to bumper	Dimension "AA"	mm	2 (±1)	2 (±1)
BE60.00-P-1027-01EA	Gap dimension, bottom of rear lamp to bumper	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1028-01EA	Gap dimension, tailgate/trunk lid to rear lamp	Dimension "AB"	mm	4 (±0, 5)	5 (+1/-1, 5)
BE60.00-P-1028-01EA	Gap dimension, tailgate/trunk lid to rear lamp	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1029-01EA	Gap dimension, soft top to fender	Dimension "AC"	mm	-	14 (+1, 5/-2)
BE60.00-P-1029-01EA	Gap dimension, soft top to fender	See		-	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1030-01EA	Gap dimension, side window on door to soft top side	Dimension "J1"	mm	-	8 (+1/-1, 5)
BE60.00-P-1030-01EA	Gap dimension, side window on door to soft top side	See		-	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1031-01EA	Gap dimension, side window on door to soft top at top	Dimension "K1"	mm	-	-

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1032-01EA	Gap dimension, soft top to roof frame	Dimension "Q1"	mm	-	7, 5 (±2)
BE60.00-P-1032-01EA	Gap dimension, soft top to roof frame	See		-	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1033-01EA	Gap dimension, soft top to trunk lid	Dimension "Y1"	mm	-	16 (±3)
BE60.00-P-1033-01EA	Gap dimension, soft top to trunk lid	See		-	AR60.00-P-0700-01RG

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Front and side Gap dimensions, shown on model 190.3

Courtesy of MERCEDES-BENZ USA

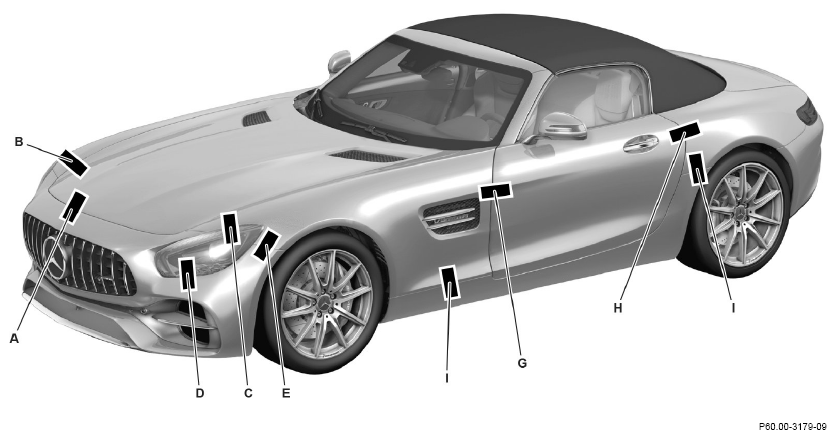

Front and side Gap dimensions, shown on model 190.4

Courtesy of MERCEDES-BENZ USA

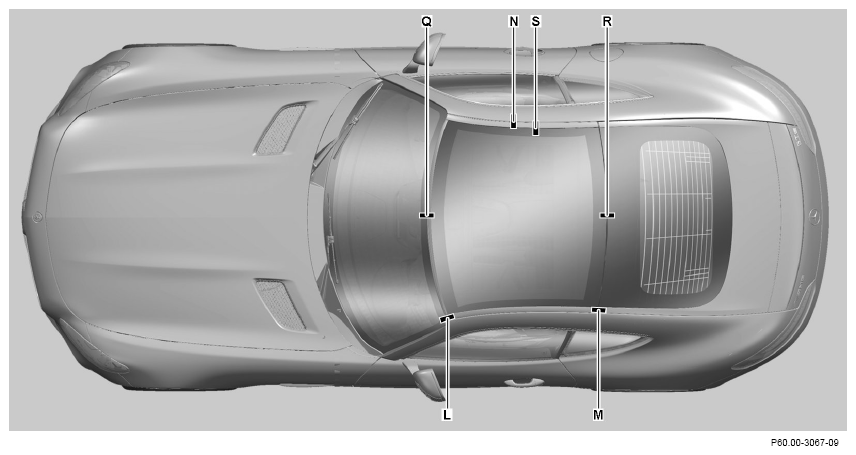

Upper Gap dimensions, shown on model 190.3

Courtesy of MERCEDES-BENZ USA

Upper Gap dimensions, shown on model 190.4

Courtesy of MERCEDES-BENZ USA

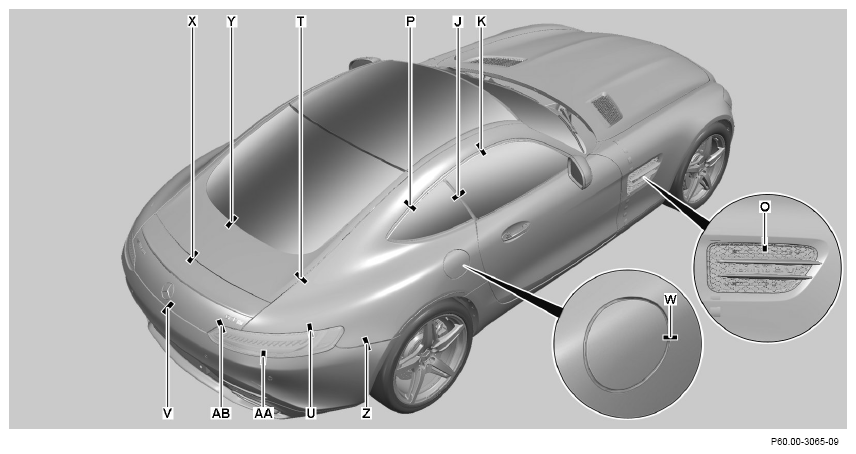

Rear and side Gap dimensions, shown on model 190.3

Courtesy of MERCEDES-BENZ USA

Rear and side Gap dimensions, shown on model 190.4

Check Gap dimensions on hoods, doors and cover with feeler gauge as shown in drawings.
The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly.

The reference measurements apply only for repair work on vehicles damaged in accidents.
