Front Window Height Adjustment - AR72.10-P-1950-05RG

Model 190

Courtesy of MERCEDES-BENZ USA

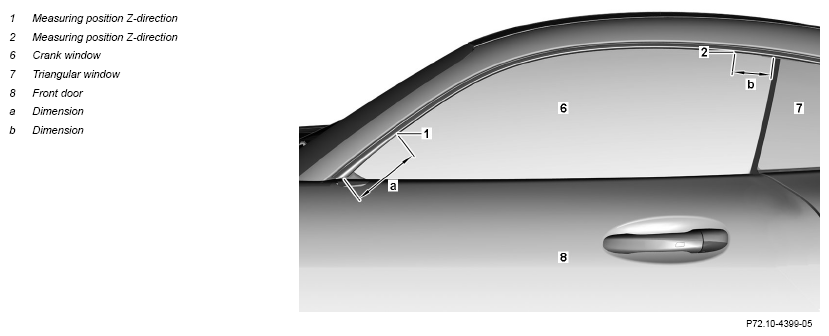

Mark measuring positions

1. Mark measuring position of Z-direction (1, 2) on crank window (6) with wax pencil.

   Use depth gauge to measure.

   Otherwise the measurement results are not sufficiently accurate.

   Measuring position in Z-direction (1) measured from end of rod in the immersion line, dimension (a) = 160 mm

   Measuring position in Z-direction (2) measured from window edge, dimension (b) = 100 mm

   Checking Z-direction

2. Open front door (8).
3. Install immersion depth meter at measuring position of Z-Direction (1, 2).
4. Close front door (8).
5. Check immersion depth dimension at measuring position of Z-Direction (1, 2), adjust if necessary.

   Measuring position of Z-direction (1) = 5, 0 mm (± 1.0 mm)

   Measuring position of Z-direction (2) = 5, 0 mm (± 1.0 mm)

   Courtesy of MERCEDES-BENZ USA

   Adjusting Z-direction

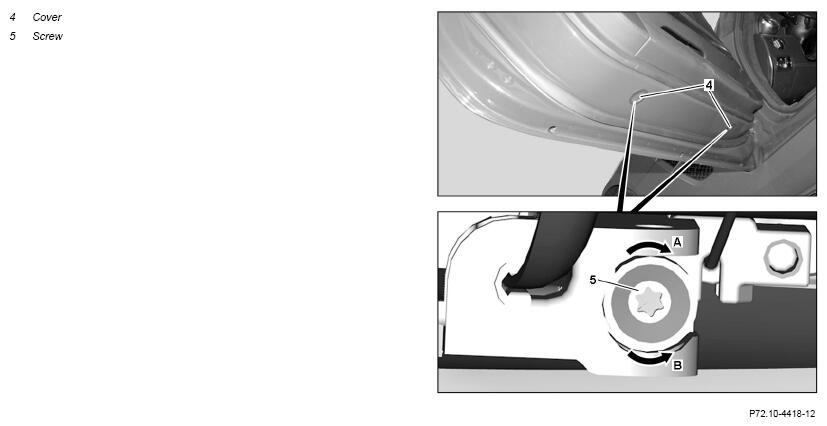

6. Remove covers (4).
7. Adjust height of crank window (6) by turning bolts (5) in appropriate direction (arrows A, B).

   The crank window (6) can be adjusted upwards by turning bolt (5) clockwise (arrow A). The distance increases. The crank window (6) can be adjusted downwards by turning bolt (5) counter-clockwise (arrow B). The distance decreases.

8. Check adjustment, repeat if necessary.
9. Install covers (4).
