Perform Basic Setting At Front Side Window - AR67.30-P-0100-01RGR
Model 190.4
GAP DIMENSIONS
| Number | Designation | Model 190.4 | ||
|---|---|---|---|---|
| BE60.00-P-1030-01EA | Gap dimension, side window on door to soft top side | Dimension "J1" | mm | 8 (+1/-1, 5) |
| See | AR60.00-P-0700-01RG | |||
CHECK VALUES FOR SIDE WINDOWS
| Number | Designation | Model 190.4 | |||
|---|---|---|---|---|---|
| BE67.30-P-1001-03D | Insertion depth of side window | To A-pillar | Dimension "a" | mm | 5 (+1, 5) |
| Dimension "b" | mm | 5 (+2) | |||
| To soft top | Dimension "c" | mm | 5 (+3, 5) | ||
| Dimension "D" | mm | 5 (+2) | |||
FRONT DOOR
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA72.10-P-1017-01T | Bolt, glass pane to power window | Nm | 8 |
Check
- Slightly open side window.

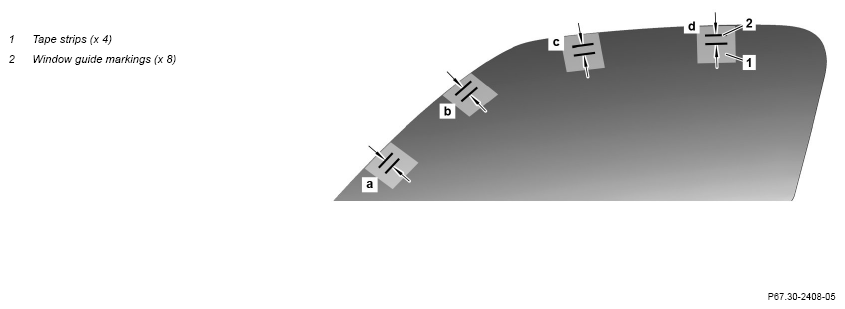

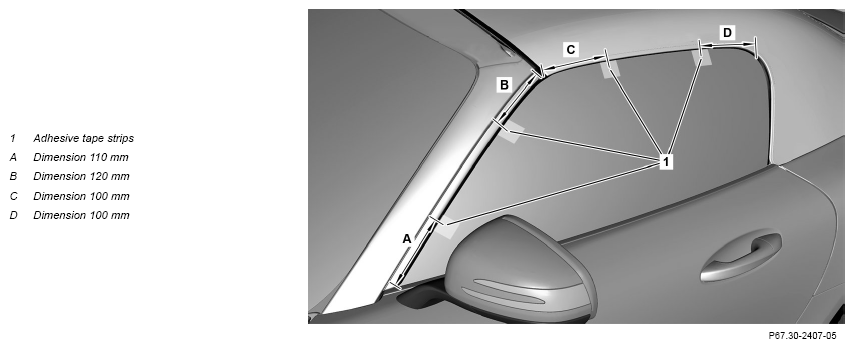

- Affix suitable tape strips (1) as per dimensions (A, B, C, D) on side window.
- Mark window guide markings (2) on tape strips (1).
- Close side window and front door.
- Check window guide depth as per window guide markings (2).

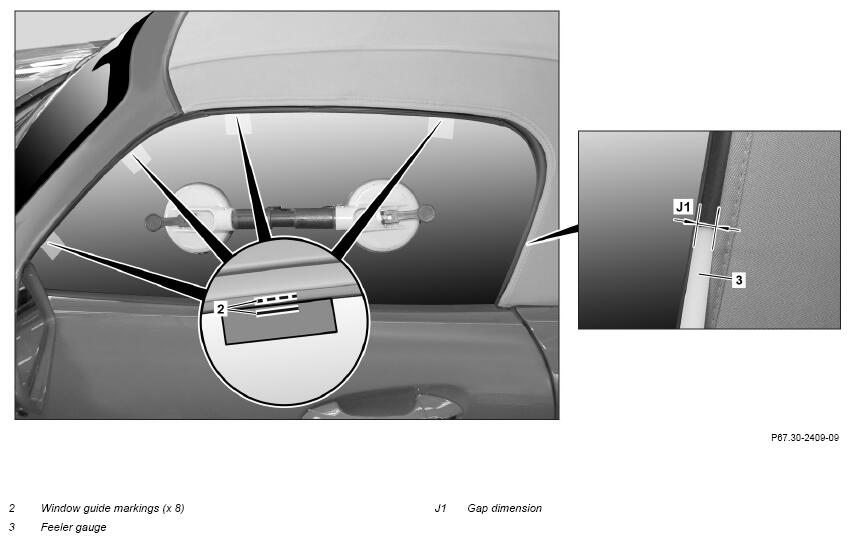

- Check gap dimension (J1) with
feeler gauge (3).
The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length.
Adjust
- Close side window and front door.

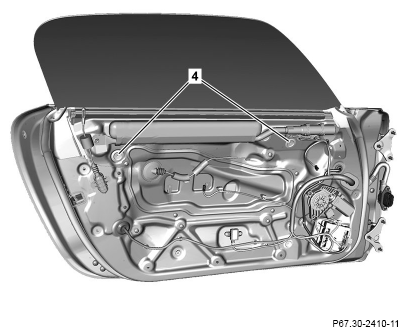

- Remove covers (4) and release screws located underneath.

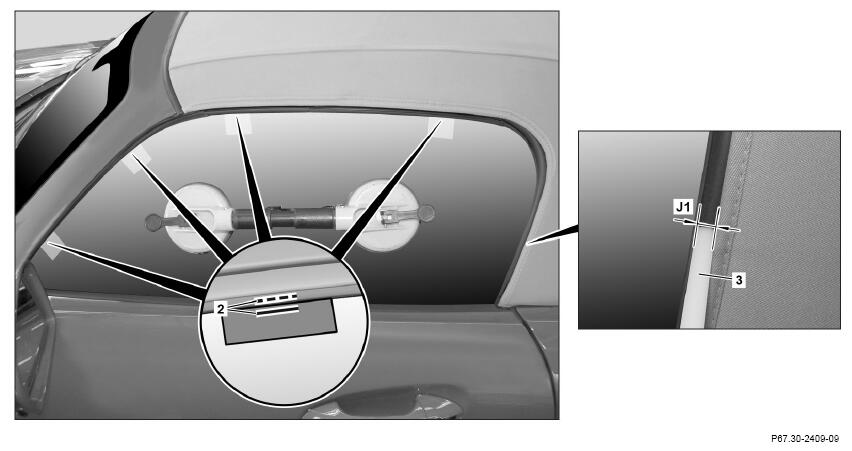

- Adjust side window as per window guide markings (2) using a cup suction tool.
- Adjust gap dimension (J1) with
- Tighten screws of side window
.
- Open and close side window multiple times by means of power window.
- Check side window adjustment.
If complaint present
↓
Repeat adjustment procedure.
- Install covers (4).
- Remove tape strips on side window.
